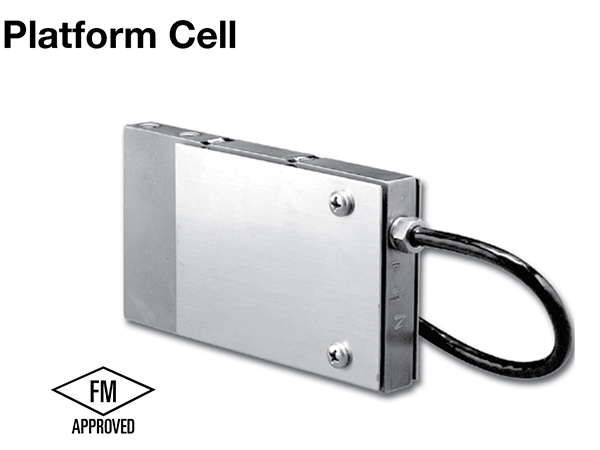

Loadcell SENSORTRONICS 60051
• Rated capacities of 10 to 200 pounds
• Stainless steel construction
• Moment-compensated design for minimal sensitivity tomoments induced by off-center loading
• Sensorgage™ sealed to IP67 standards
• Factory Mutual System Approved for Classes I, II, III;
• Divisions 1 and 2; Groups A through G. Also, non-incendive ratings (No barriers!)
| Model | 60051 | |
| Rated Capacity (lbs) | 10, 15, 25, 50, 100, 200 | |
| Accuracy Class According to OIML-R-60 | – | |
| Max. Number of Verification Intervals | – | |
| Y= Emax/Vmin | – | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | + 0.25 ~ -10 | |
| Zero balance | 1.0 | |
| Combiner Error %RO | ± 0.03 | |
| Non -Repeatability %RO | ± 0.01 | |
| Zero Creep for 30min %RO | ± 0.03 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0015 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0008 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 380 ~ 450 |
| Output (Ω) | 349 ~ 355 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Stainless steel | |
| Cable Specification | ø 8.0 x 4P x 6m | |
| IP | 67 | |
