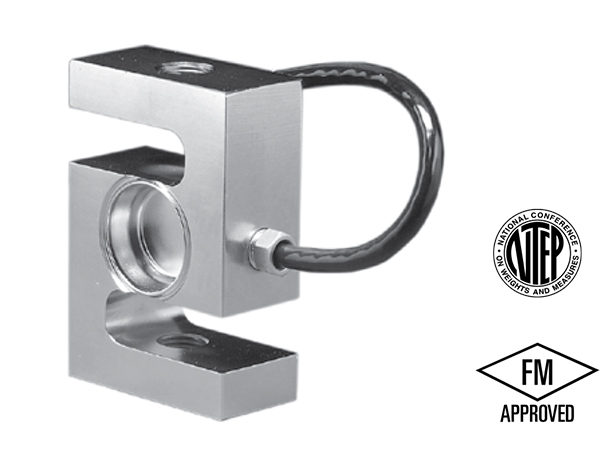

Loadcell SENSORTRONICS 60063
• Rated capacities of 500 to 20,000 pounds
• Stainless steel, welded seal construction
• Integral loading brackets
• Compatible with TCM tension mounting hardware
• Designed for single or multiple load cell applications
• Trade certified for NTEP Class IIIL: 10000d andIII: 5000d• Sensorgage™ sealed to IP68 standards
• Factory Mutual System Approved for Classes I, II, III;
• Divisions 1 and 2; Groups A through G. Also, non-incendive ratings (No barriers!)
Optional
Mounting and loading accessory hardware available
| Model | 60063 | |
| Rated Capacity (lbs) | 500, 750, 1k, 1.5k, 2k, 2.5k, 3k, 5k, 10k, 15k, 20k | |
| Accuracy Class According to OIML-R-60 | OIML-R60 | |
| Max. Number of Verification Intervals | 3000 | |
| Y= Emax/Vmin | – | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | + 25% ~ -10% | |
| Zero balance | 1.0 | |
| Combiner Error %RO | ± 0.03 | |
| Non -Repeatability %RO | ± 0.015 | |
| Zero Creep for 30min %RO | ± 0.03 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0018 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0008 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 349 ~ 450 |
| Output (Ω) | 349 ~ 355 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Stainless steel | |
| Cable Specification | ø 8.0 x 4P x 6m | |
| IP | 68 | |
