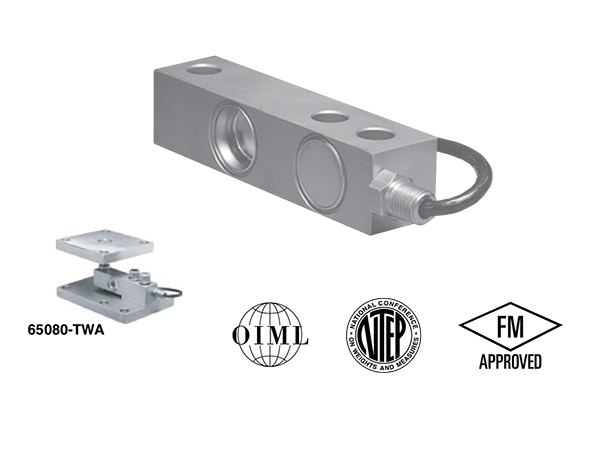

Loadcell SENSORTRONICS 65083
• Rated capacities of 1000 to 20,000 pounds
• Stainless steel, welded seal construction
• Trade certified for NTEP Class IIIL 10000 and III 5000divisions and OIML R-60 3000 divisions
• Hostile or clean environment
• Sealed to IP67, IP68 or IP69K rating
• Factory Mutual System Approved for Classes I, II, III;
• Divisions 1 and 2; Groups A through G. Also, non-incendive ratings (No barriers!)
Optional
Integral conduit adaptor with teflon jacketed cable available
| Model | 65083 | |
| Rated Capacity (lbs) | 1k, 1.5k, 2.5k, 4k, 5k, 10k, 15k, 20k lbs | |
| Rated Capacity (kgf) | 500, 750 kgf, 1, 2, 5 tf | |
| Accuracy Class According to OIML-R-60 | OIML R60 | |
| Max. Number of Verification Intervals | 3000 | |
| Y= Emax/Vmin | 8333 | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | ± 0.25 | |
| Zero balance | ± 1.0 | |
| Combiner Error %RO | ± 0.02 | |
| Non -Repeatability %RO | ± 0.01 | |
| Zero Creep for 30min %RO | ± 0.017 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0010 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0007 | |
| Safe sideload % Emax | 100 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 343 ~ 357 |
| Output (Ω) | 349 ~ 355 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Stainlees steel | |
| Cable Specification | ø 8.0 x 4P x 6m | |
| IP | 68 – 69 | |
