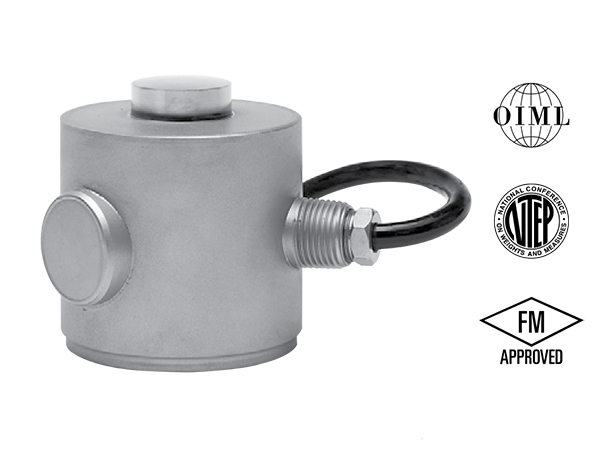

Loadcell SENSORTRONICS 65088
• Capacity ranges of 25,000 to 200,000 pounds,10 to 100 metric tonnes
• Stainless steel, welded seal construction
• Single piece multi-column design
• 3 times more side load capacity than other designs
• Integral conduit adaptor• 35 feet (10.7m) standard cable length
• Trade certified for NTEP Class III:5000d, IIIL:10000dand OIML R-60 3000d
• Welded Sensorgage™ sealed to IP67 standards
| Model | 65088 | |
| Rated Capacity (lbs) | 25k, 50k, 100k, 200k lbs | |
| Rated Capacity (tf) | 10, 25, 40, 50, 100 tf | |
| Accuracy Class According to OIML-R-60 | OIML R60 | |
| Max. Number of Verification Intervals | 3000 | |
| Y= Emax/Vmin | 8333 | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | ± 0.25 | |
| Zero balance | ± 1.0 | |
| Combiner Error %RO | ± 0.02 | |
| Non -Repeatability %RO | ± 0.01 | |
| Zero Creep for 30min %RO | ± 0.017 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0010 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0007 | |
| Safe sideload % Emax | 100 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 400 | |
| Excitation Voltage | Recommended (V) | 5 ~ 20 |
| Maximum (V) | 25 | |
| Resistance | Input (Ω) | 445.5 ~ 454.5 |
| Output (Ω) | 475.2 ~ 484.8 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Stainlees steel | |

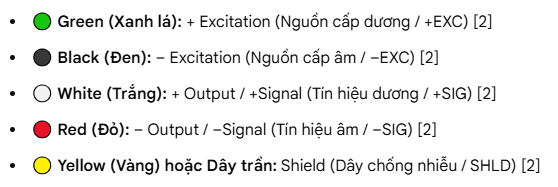

| Cable Specification | ø 8.0 x 4P x 10m | |
| IP | 67 | |
