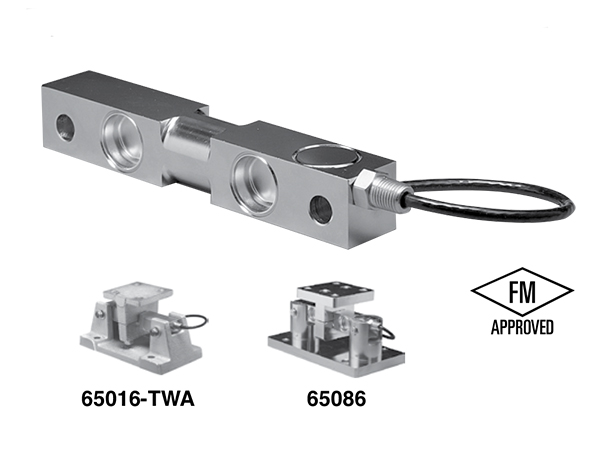

Loadcell SENSORTRONICS 65016W
• Rated capacities of 1000 to 100,000 pounds
• Stainless steel, welded seal construction
• Insensitive to side loads and bending moments
• High output—well suited to high deadload/low liveload applications
• Load cells have matched outputs for multi-cell systems
• Integral conduit adaptor
• Sensorgage™ sealed to IP67 standards
• Factory Mutual System Approved for Classes I, II, III;
• Divisions 1 and 2; Groups A through G.Also, non-incendive ratings (No barriers!)
Optional
Fully hermetically sealed available
| Model | 65016W | |
| Rated Capacity (lbs) | 1k, 1.5k, 2k, 2.5k, 5k, 10k, 15k, 25k, 35k, 50k, 75k, 80k, 100k | |
| Accuracy Class According to OIML-R-60 | OIML-R60 | |
| Max. Number of Verification Intervals | 3000 | |
| Y= Emax/Vminh | – | |
| Rate Output mV/V (lbs) | 3.0 | |
| Tolerance on Rate Output mV/V (lbs) | ± 0.25 | |
| Zero balance | ± 1.0 | |
| Combiner Error %RO | ± 0.03 | |
| Non -Repeatability %RO | ± 0.01 | |
| Zero Creep for 30min %RO | ± 0.03 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0015 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0008 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 15 |
| Maximum (V) | 25 | |
| Resistance | Input (Ω) | 686 ~ 714 |
| Output (Ω) | 699 ~ 707 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Stainless steel | |
| Cable Specification | ø 8.0 x 4P x 7m | |
| IP | 67 (IP 68 welded seals, glass to metal seal) | |
