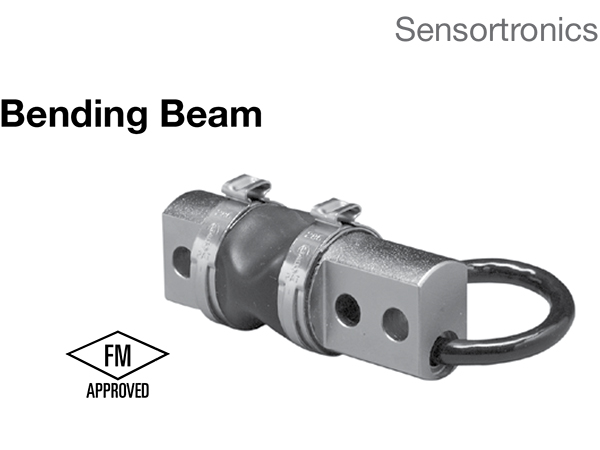

Loadcell SENSORTRONICS 60040
• Rated capacities of 25 to 500 pounds
• Tension or compression loading capabilities
• Compact, low profile design• Sensorgage™ sealed to IP65 standards
• Factory Mutual System Approved for Classes I, II, III;Divisions 1 and 2; Groups A through G. Also, non-incendive ratings (No barriers!)
Optional
Companion tank weighing assemblies available (65059 TWA)
| Model | 60040 | |
| Rated Capacity (lbs) | 25, 50, 100, 150, 250, 500 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | – | |
| Y= Emax/Vmin | – | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | + 0.25 ~ -10 | |
| Zero balance | 1.0 | |
| Combiner Error %RO | ± 0.03 | |
| Non -Repeatability %RO | ± 0.01 | |
| Zero Creep for 30min %RO | ± 0.03 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0015 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0008 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 380 ~ 450 |
| Output (Ω) | 349 ~ 355 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -18 ~ +65 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø 8.0 x 4P x 6m | |
| IP | 65 | |
