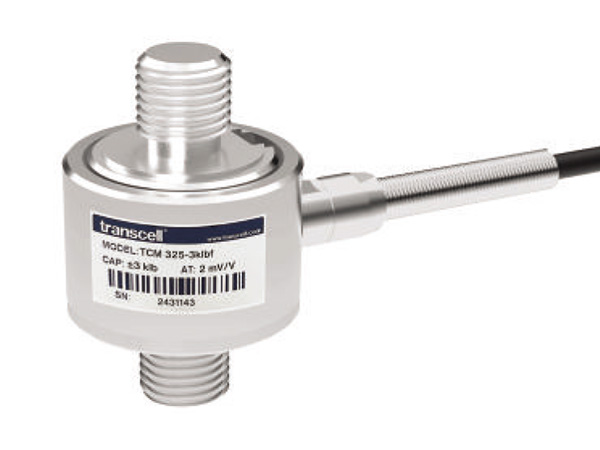

Loadcell TRANSCELL TCM-325
Compact design for easy implementation
Upgraded accuracy for improved machinecontrol and measurement reliability
17-4PH stainless steel / IP64 design withstandsharsh environments
Variety of common capacities and thread types
| Model | TCM-325 | |
| Rated Capacity (klb) | 2, 3, 13 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 10% | |
| Creep Error (30 minutes) %RO | – | |
| Nonlinearity %RO | ± 0.25 | |
| Hysteresis %RO | ± 0.25 | |
| Repeatability %RO | ± 0.05 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 410 ± 30 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | +15 ~ +72 | |
| Operating Temperature Range 0C | -42 ~ +93 | |
| Material | Stainless steel | |
| Cable Specification | ø 5.1 x 4P x 3m | |
| IP | 64 | |
