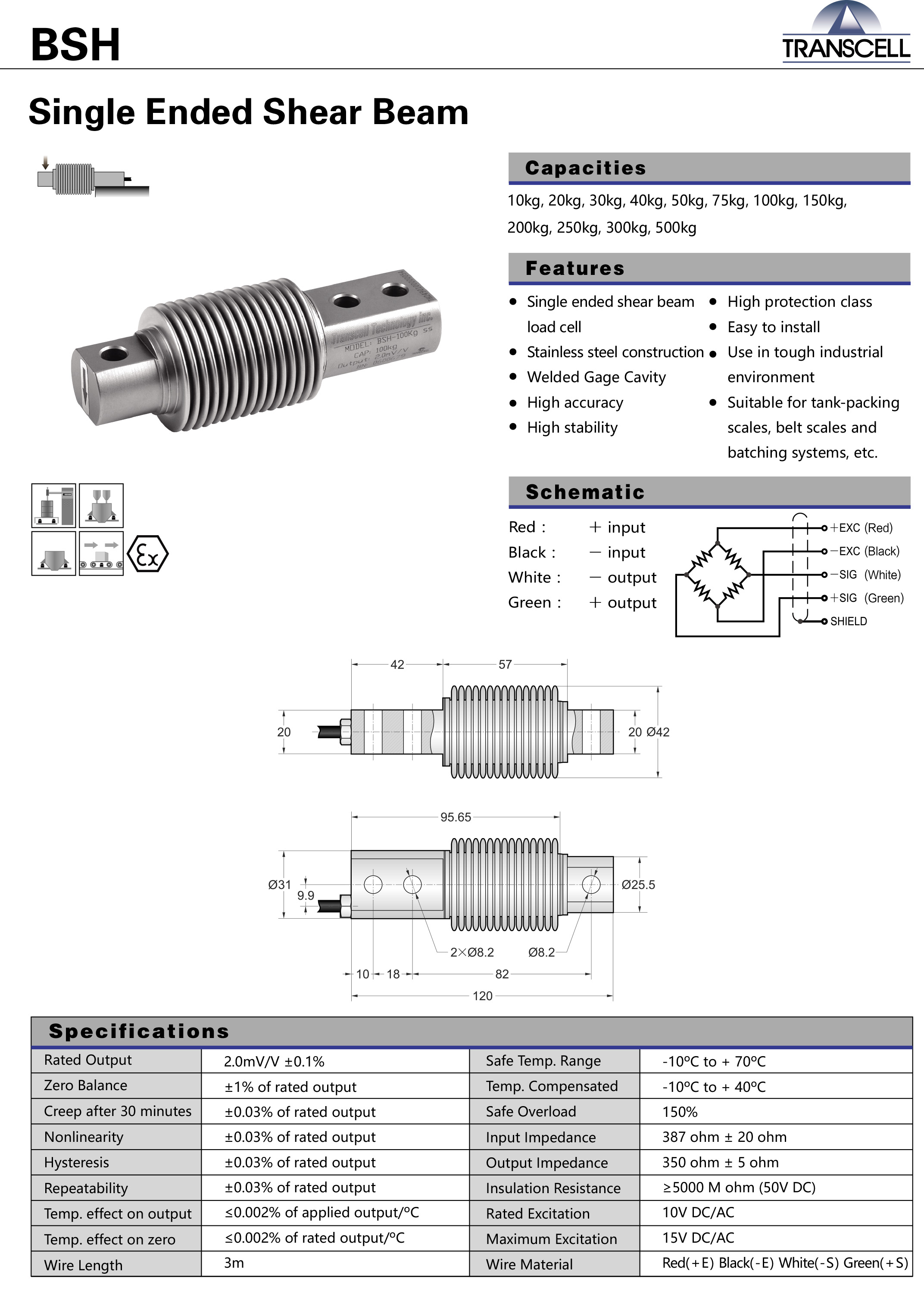

Loadcell TRANSCELL BSH
Single ended shear beam load cell
Stainless steel construction
Welded Gage Cavity
High accuracy
High stability
High protection class
Easy to install
Use in tough industrial environment
Suitable for tank-packing scales, belt scales and batching systems, etc.
| Model | BSH | |
| Rated Capacity (kgf) | 10, 20, 30, 40, 50, 75, 100, 150, 200, 250, 300, 500 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Creep Error (30 minutes) %RO | ± 0.03 | |
| Nonlinearity %RO | ± 0.03 | |
| Hysteresis %RO | ± 0.03 | |
| Repeatability %RO | ± 0.03 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 387 ± 20 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø4.4 x 4P x 3m | |
| IP | – | |
