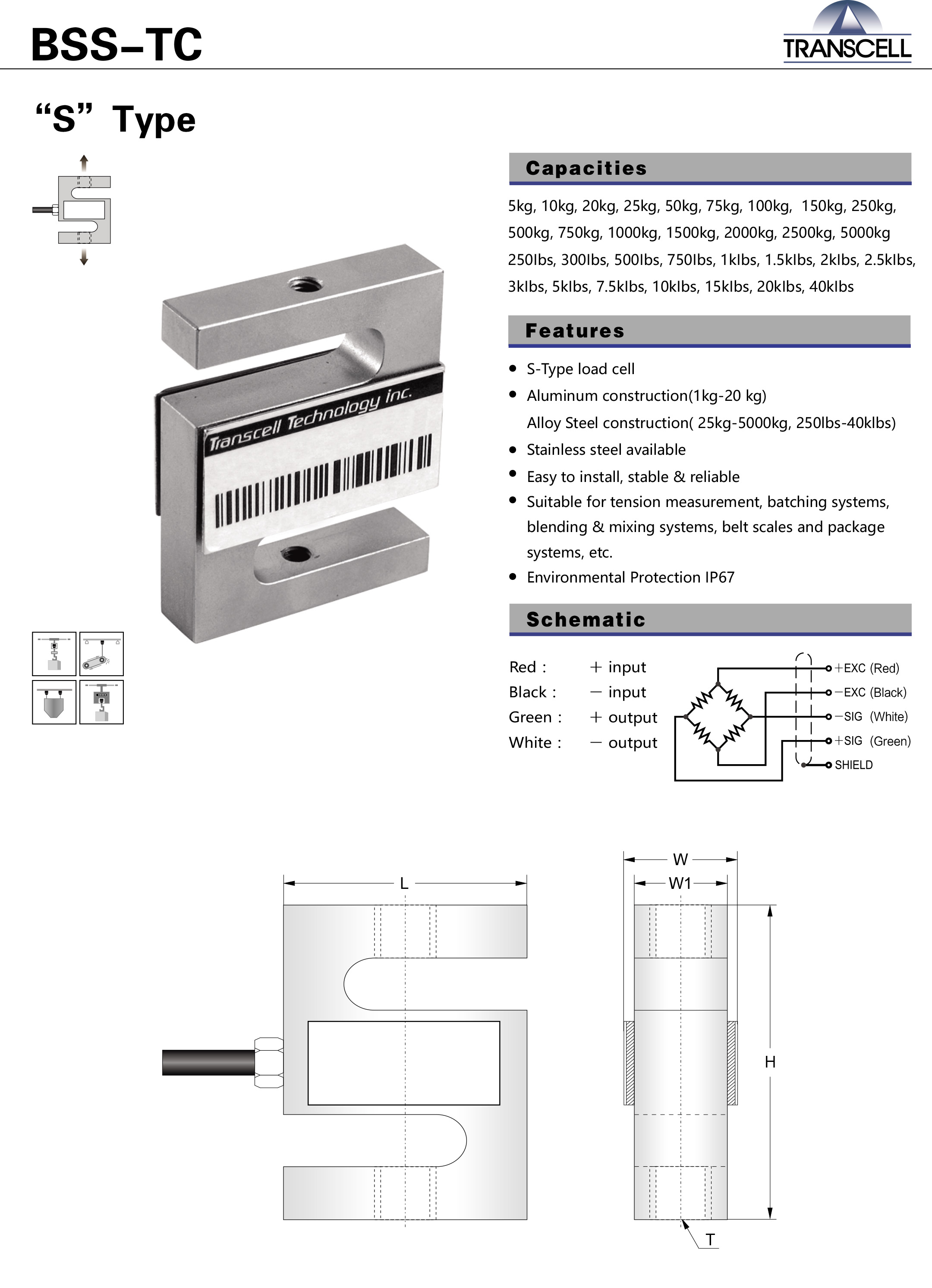

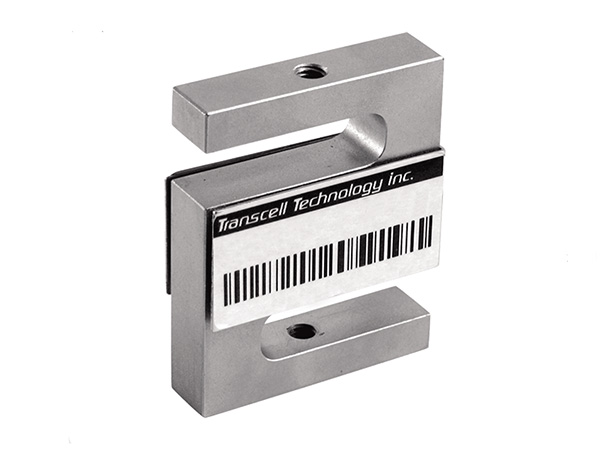

Loadcell TRANSCELL BSS-TC
S-Type load cell
Aluminum construction(1kg-20 kg)
Alloy Steel construction( 25kg-5000kg, 250lbs-40klbs)
Stainless steel available
Easy to install, stable & reliable
Suitable for tension measurement, batching systems, blending & mixing systems, belt scales and package systems, etc.
Environmental Protection IP67
| Model | BSS-TC | |
| Rated Capacity (kgf) | 5, 10, 20, 25, 50, 75, 100, 150, 250, 500, 750, 1000, 1500, 2000, 2500, 5000 | |
| Rated Capacity (lbs) | 250, 300, 500, 750, 1k, 1.5k, 2k, 2.5k, 3k, 5k, 7.5k, 10k, 15k, 20k, 40k | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.25% | |
| Creep Error (30 minutes) %RO | ± 0.03 | |
| Nonlinearity %RO | ± 0.02 | |
| Hysteresis %RO | ± 0.02 | |
| Repeatability %RO | ± 0.02 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 410 ± 20 |
| Output (Ω) | 385 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +70 | |
| Material | Aluminum – Nickel Plated alloy steel | |
| Cable Specification | ø4.4 x 4P x 3m | |
| IP | 67 | |
