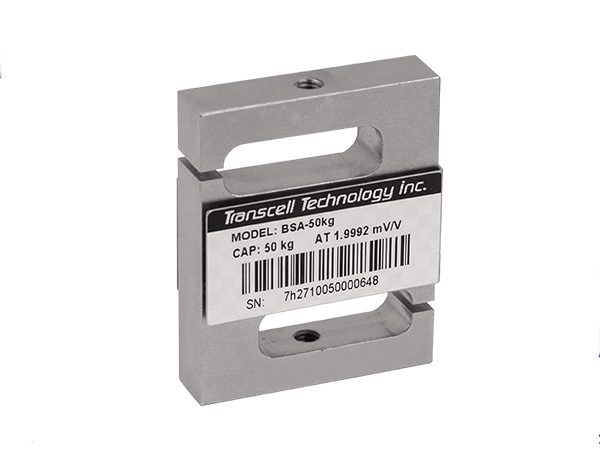

Loadcell TRANSCELL BSA
S-Type load cell
Nickel-plated alloy steel construction
Easy to install, stable & reliable
Suitable for tension measurement, batching systems, industrial scales and package systems, etc.
| Model | BSA | |
| Rated Capacity (kgf) | 25, 50kgf, 100, 200lbs | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Creep Error (30 minutes) %RO | ± 0.03 | |
| Nonlinearity %RO | ± 0.03 | |
| Hysteresis %RO | ± 0.03 | |
| Repeatability %RO | ± 0.03 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 387 ± 20 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +70 | |
| Material | Nickel-plated alloy steel | |
| Cable Specification | ø4.4 x 4P x 6m | |
| IP | – | |
