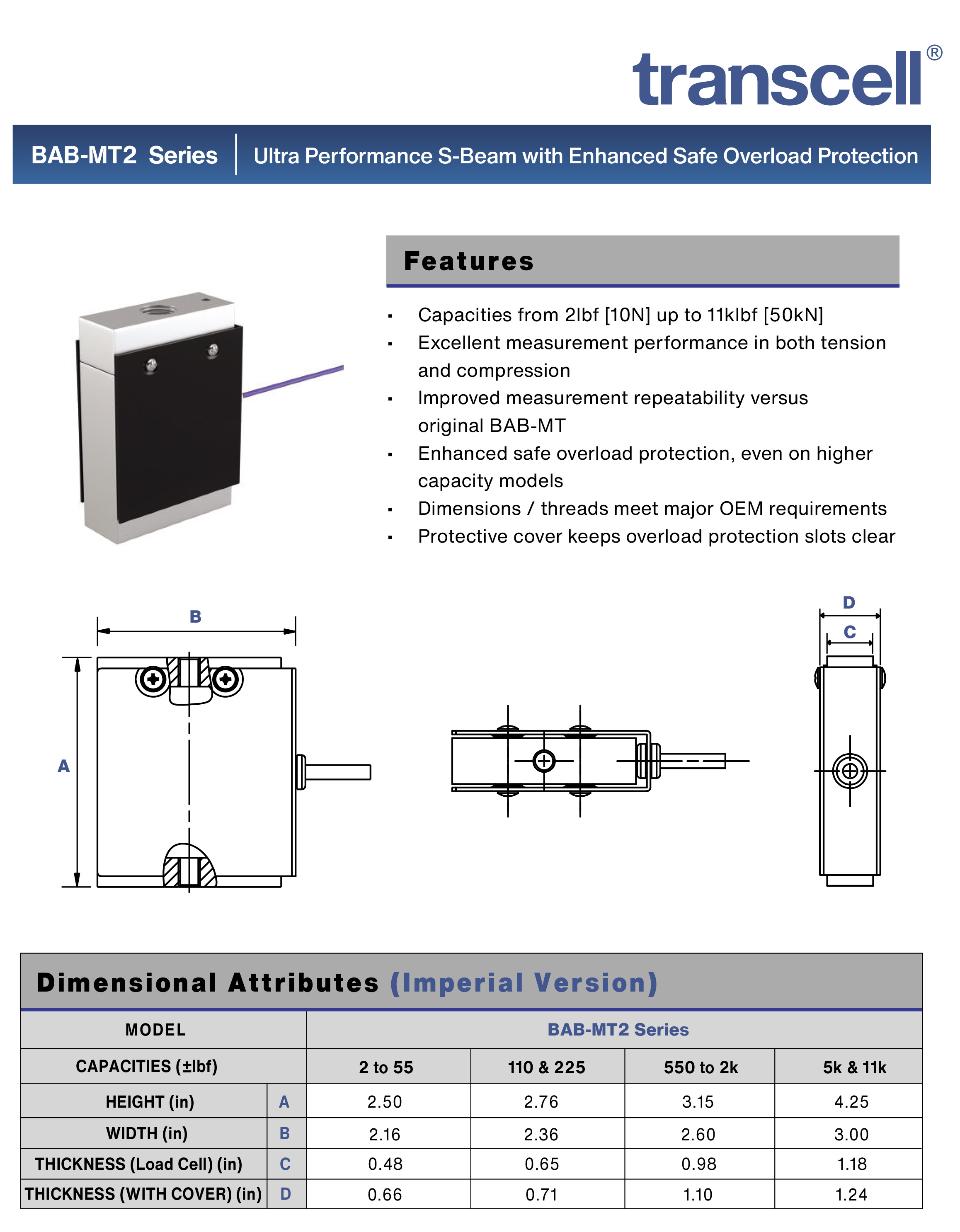

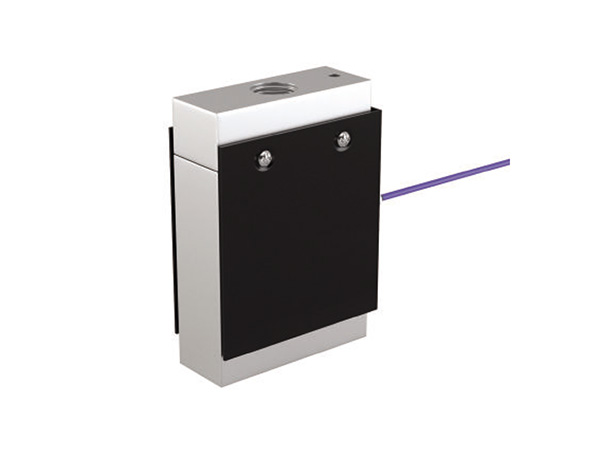

Loadcell TRANSCELL BAB-MT2
Capacities from 2lbf [10N] up to 11klbf [50kN]
Excellent measurement performance in both tensionand compression
Improved measurement repeatability versusoriginal BAB-MT
Enhanced safe overload protection, even on highercapacity models
Dimensions / threads meet major OEM requirements
Protective cover keeps overload protection slots clear
| Model | BAB-MT2 | |
| Rated Capacity (lbs) | 2, 5, 10, 20, 55, 110, 225, 550, 1k, 2k, 5k, 11k | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Creep Error (30 minutes) %RO | ± 0.01 | |
| Nonlinearity %RO | ± 0.03 | |
| Hysteresis %RO | ± 0.03 | |
| Repeatability %RO | ± 0.03 | |
| Zero Balance %RO | ± 0.06 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 387 ± 20 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø4.4 x 4P x 3m | |
| IP | – | |
