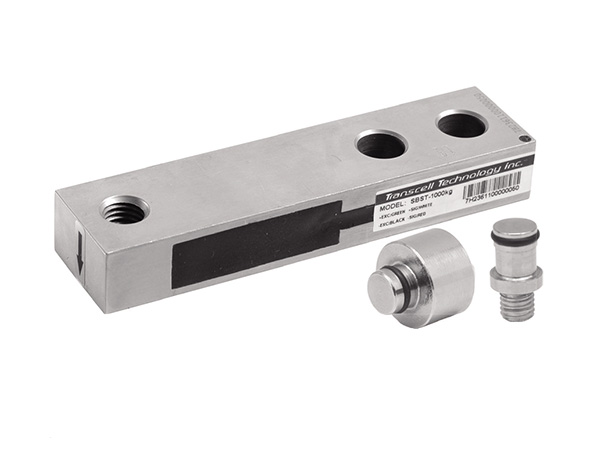

Loadcell TRANSCELL SBST
Single ended shear beam load cell
Stainless steel construction
High accuracy
High stabilityUnique “blind” loading hole
Easy to install
High input resisitance
Suitable for packaging systems and batching systems, etc

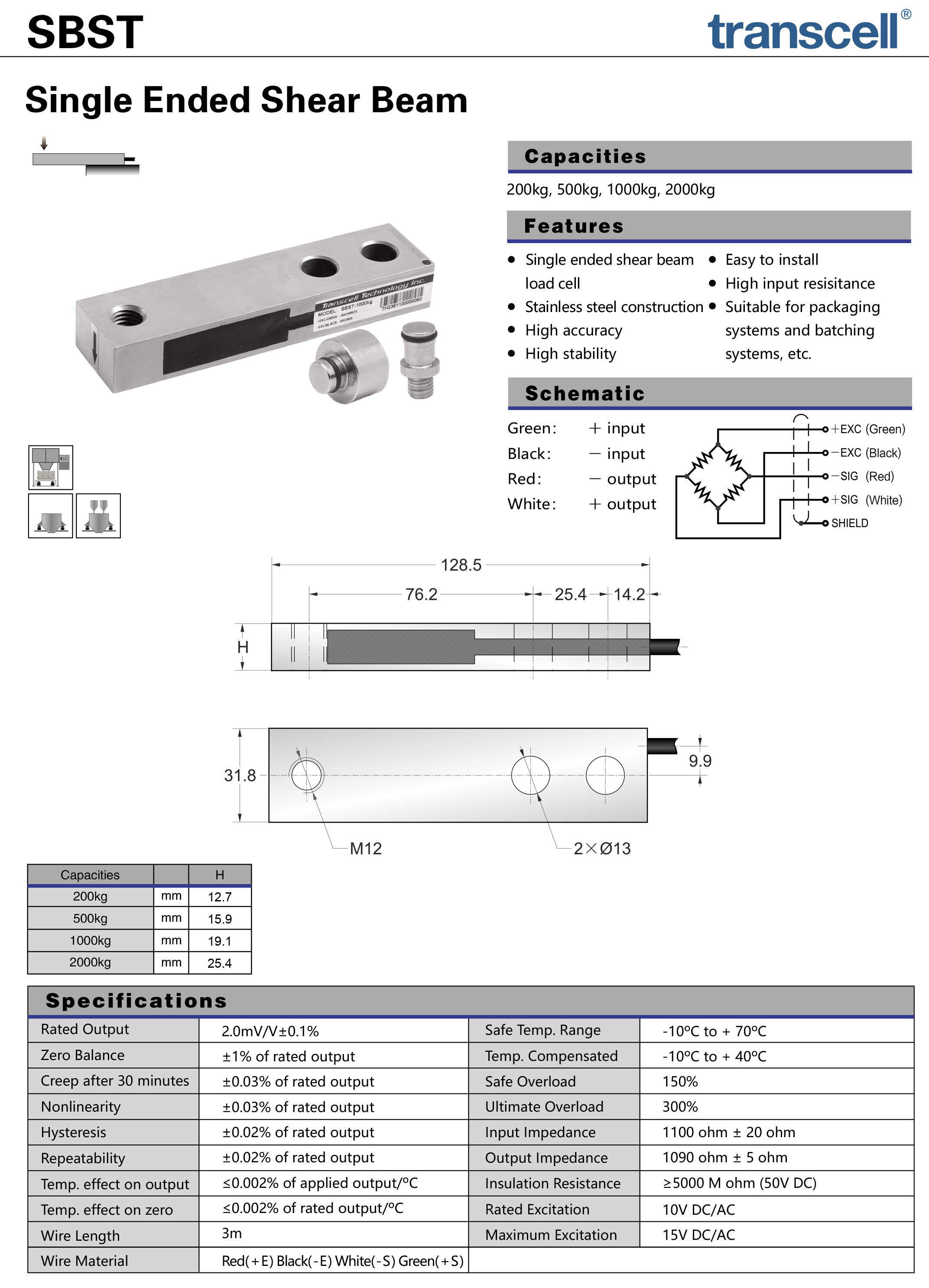

| Model | SBST | |
| Rated Capacity (kgf) | 200, 500, 1000, 2000 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Creep Error (30 minutes) %RO | ± 0.03 | |
| Nonlinearity %RO | ± 0.03 | |
| Hysteresis %RO | ± 0.02 | |
| Repeatability %RO | ± 0.02 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 1100 ± 20 |
| Output (Ω) | 1090 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø4.4 x 4P x 3m | |
| IP | – | |
