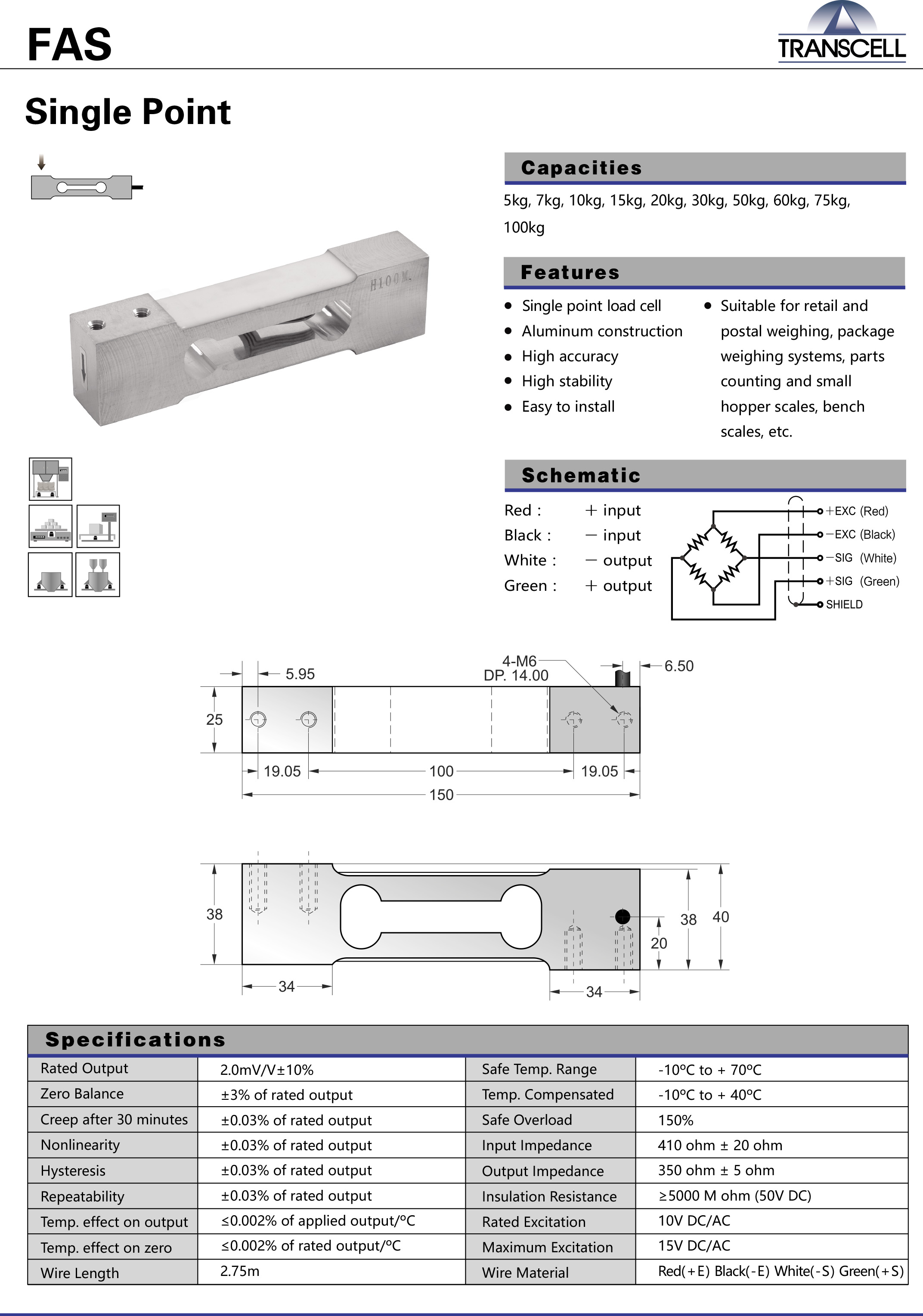

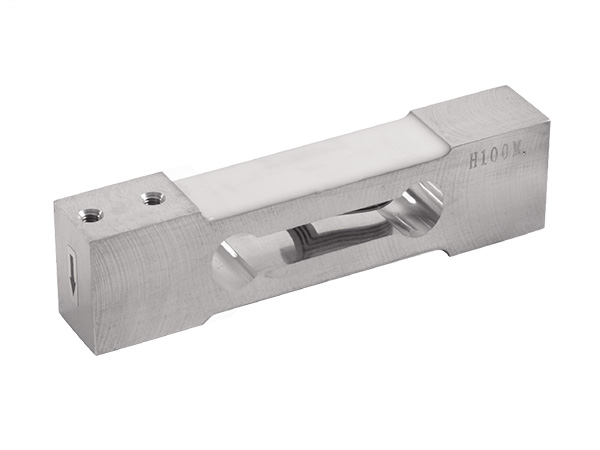

Loadcell TRANSCELL FAS
Single point load cell
Aluminum construction
High accuracy
High stability
Easy to install
Suitable for retail and postal weighing, package weighing systems, parts counting and small hopper scales, bench scales, etc.
| Model | FAS | |
| Rated Capacity (kgf) | 5, 7, 10, 15, 20, 30, 50, 60, 75, 100 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 10% | |
| Creep Error (30 minutes) %RO | ± 0.03 | |
| Nonlinearity %RO | ± 0.03 | |
| Hysteresis %RO | ± 0.03 | |
| Repeatability %RO | ± 0.03 | |
| Zero Balance %RO | ± 3.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 410 ± 20 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +70 | |
| Material | Aluminum | |
| Cable Specification | ø4.4 x 4P x 2.75m | |
| IP | – | |
