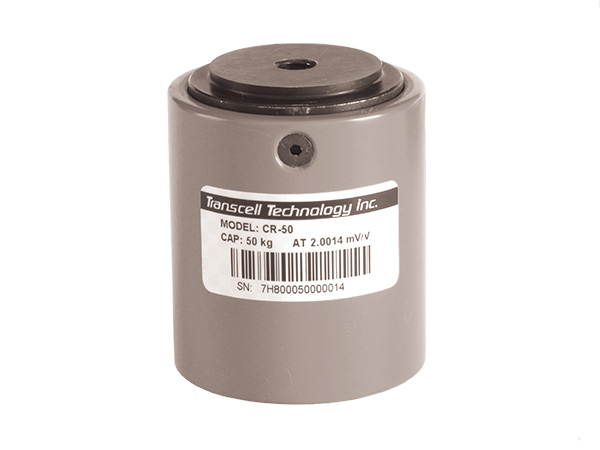

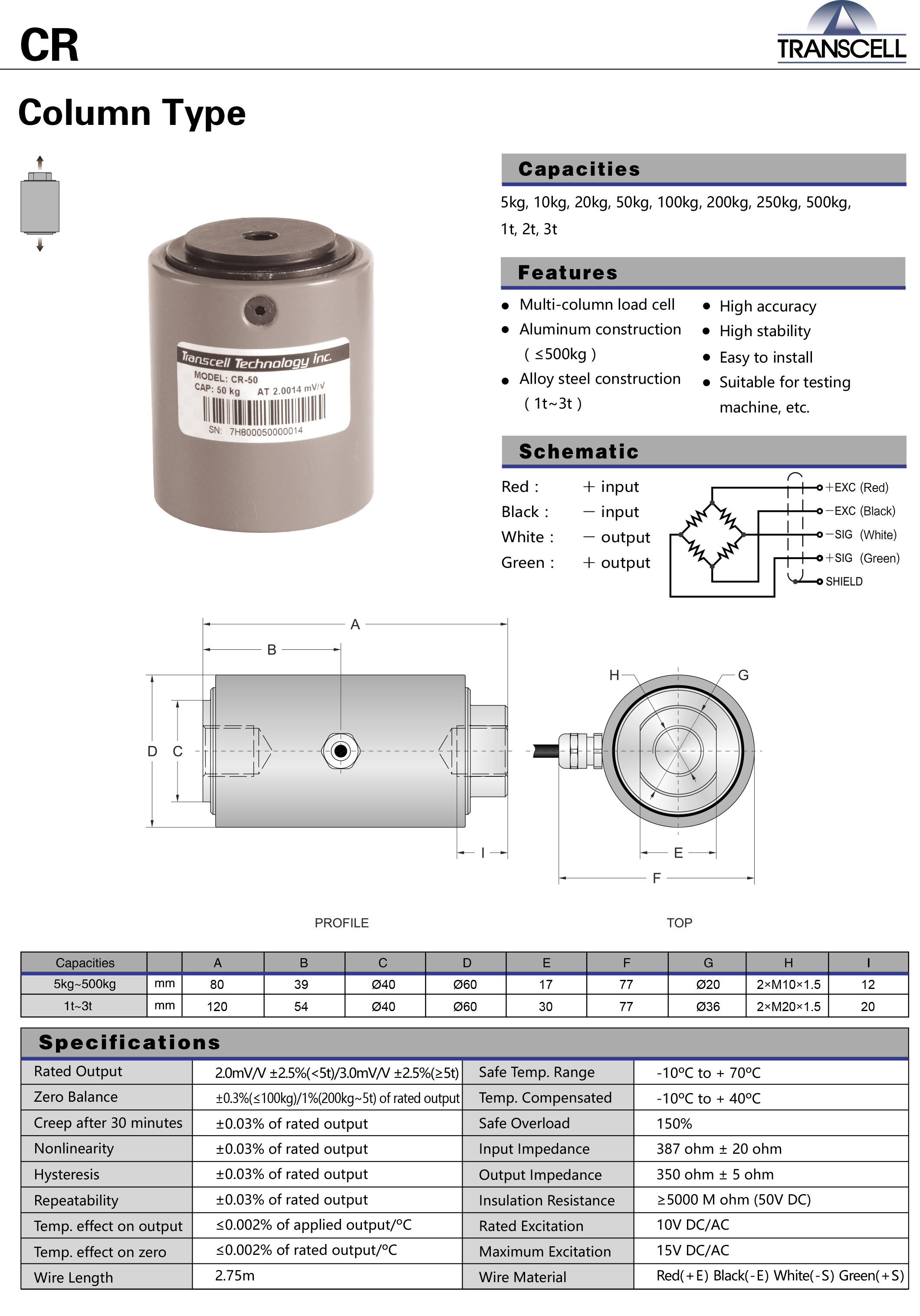

Loadcell TRANSCELL CR
Multi-column load cell
Aluminum construction （≤500kg）
Alloy steel construction （1t~3t）
High accuracy
High stability
Easy to install
Suitable for testing machine, etc
| Model | CR | |
| Rated Capacity (kgf) | 5, 10, 20, 50, 100, 200, 250, 500kgf, 1, 2, 3tf | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 2.5% | |
| Creep Error (30 minutes) %RO | ± 0.03 | |
| Nonlinearity %RO | ± 0.03 | |
| Hysteresis %RO | ± 0.03 | |
| Repeatability %RO | ± 0.03 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 387 ± 20 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +70 | |
| Material | Aluminum – Nickel-plated alloy steel | |
| Cable Specification | ø4.4 x 4P x 2.75m | |
| IP | – | |
