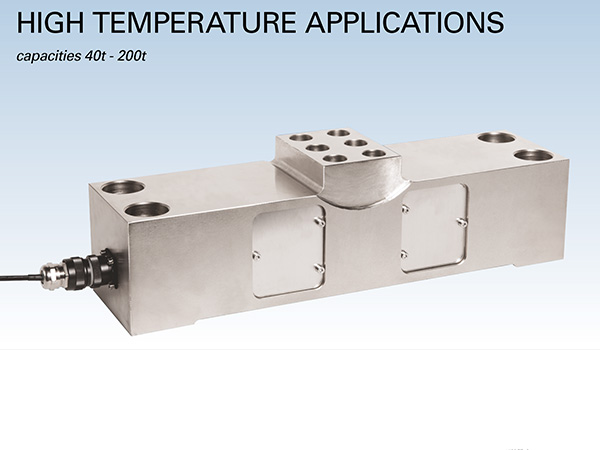

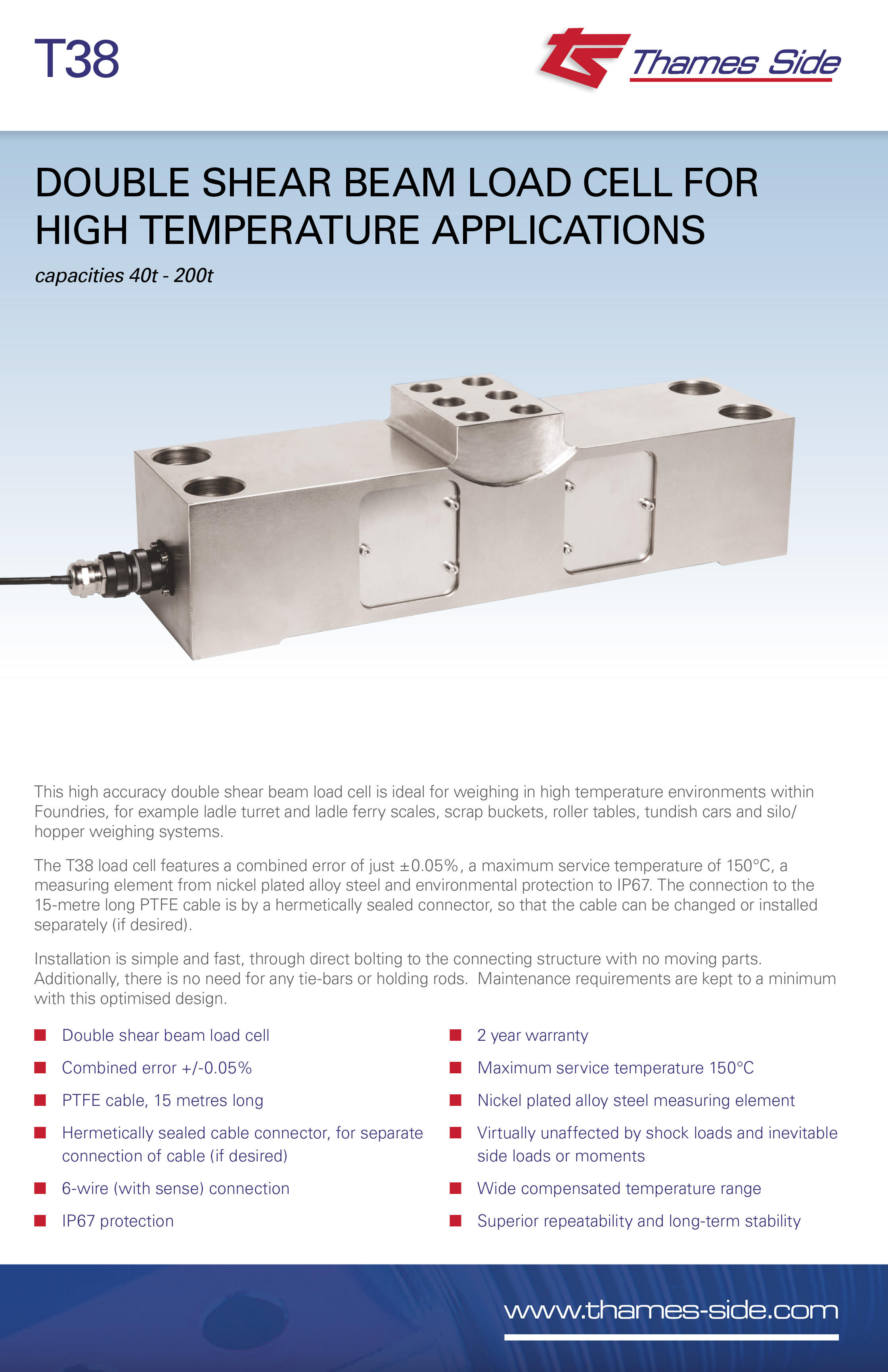

Loadcell THAMES SIDE T38
■ Double shear beam load cell
■ Combined error +/-0.05%
■ Hermetically sealed cable connector, for separateconnection of cable (if desired)
■ IP67 protection
■ Maximum service temperature 150°C
■ Nickel plated alloy steel measuring element
■ Virtually unaffected by shock loads and inevitableside loads or moments
■ Wide compensated temperature range
■ Superior repeatability and long-term stability
| Model | T38 | |
| Rated Capacity (tf) | 40, 50, 100, 150, 200 | |
| Accuracy Class According to OIML-R-60 | – | |
| Max. Number of Verification Intervals | ||
| Rate Output mV/V | 2 ± 0.25% | |
| Zero balance | ± 2 | |
| Combiner Error %RO | ± 0.05 | |
| Non -Repeatability %RO | ± 0.05 | |
| Zero Creep for 30min %RO | ± 0.05 | |
| Temp. Effect on Zero Balance %S/0C | ± 0.005 | |
| Temp. Effect on Span %S/ 0C | ± 0.003 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 800 ± 30 |
| Output (Ω) | 700 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +70 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø 4.5 x 6P x 15m | |
| IP | 67 | |
