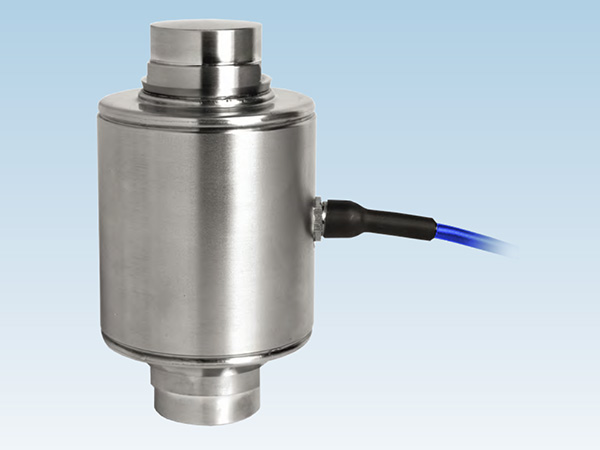

Loadcell THAMES SIDE T35
■ Stainless steel load cell, fully welded andhermetically sealed
■ Protected to IP68 and IP69K
■ In-built surge arrestors for lightning protection
■ Industry standard height and mounting pattern
■ Calibrated in mV/V/Ohm, by output currentmatching at ± 0.05 %, to minimise corneradjustment
■ PU cable is highly resistant to rats and otherforms of attack
■ Approval to OIML R60 C4 (4000 divisions)
■ Y-value of 15,000 divisions
■ Wide operating temperature range
■ High Temperature and Parylene coatingoptions available
| Model | T35 | |
| Rated Capacity (tf) | 30, 40 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | 4000 | |
| Rate Output mV/V | 2 | |
| Zero balance %RO | ± 2 | |
| Combiner Error %RO | ± 0.013 | |
| Non -Repeatability %RO | ± 0.01 | |
| Zero Creep for 30min %RO | ± 0.012 | |
| Temp. Effect on Zero Balance %S/0C | ± 0.002 | |
| Temp. Effect on Span %S/ 0C | ± 0.0012 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 1150 ± 50 |
| Output (Ω) | 1005 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -50 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø 6 x 6P x 20m | |
| IP | 68/69k | |
