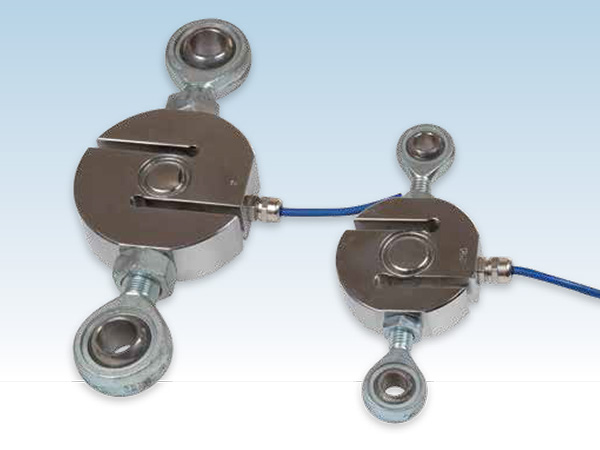

Loadcell THAMES SIDE 650
■ Stainless steel load sensor
■ Sealed to IP68 / IP69K
■ Tension / compression
■ Range of accessories available
■ Excellent long term stability
■ 3000 divisions OIML R60 class C
■ High durability PU cable
| Model | 650 | |
| Rated Capacity (kgf) | 250, 500, 1000, 2000, 5000, 7500 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | 3000 | |
| Rate Output mV/V | 2 ± 10% | |
| Zero balance %RO | ± 2 | |
| Combiner Error %RO | ± 0.017 | |
| Non -Repeatability %RO | ± 0.015 | |
| Zero Creep for 30min %RO | ± 0.016 | |
| Temp. Effect on Zero Balance %S/0C | ± 0.002 | |
| Temp. Effect on Span %S/ 0C | ± 0.0012 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +55 | |
| Operating Temperature Range 0C | -40 ~ +95 | |
| Material | Stainless steel | |
| Cable Specification | ø 5.7 x 4P x 5m | |
| IP | 68/69k | |
