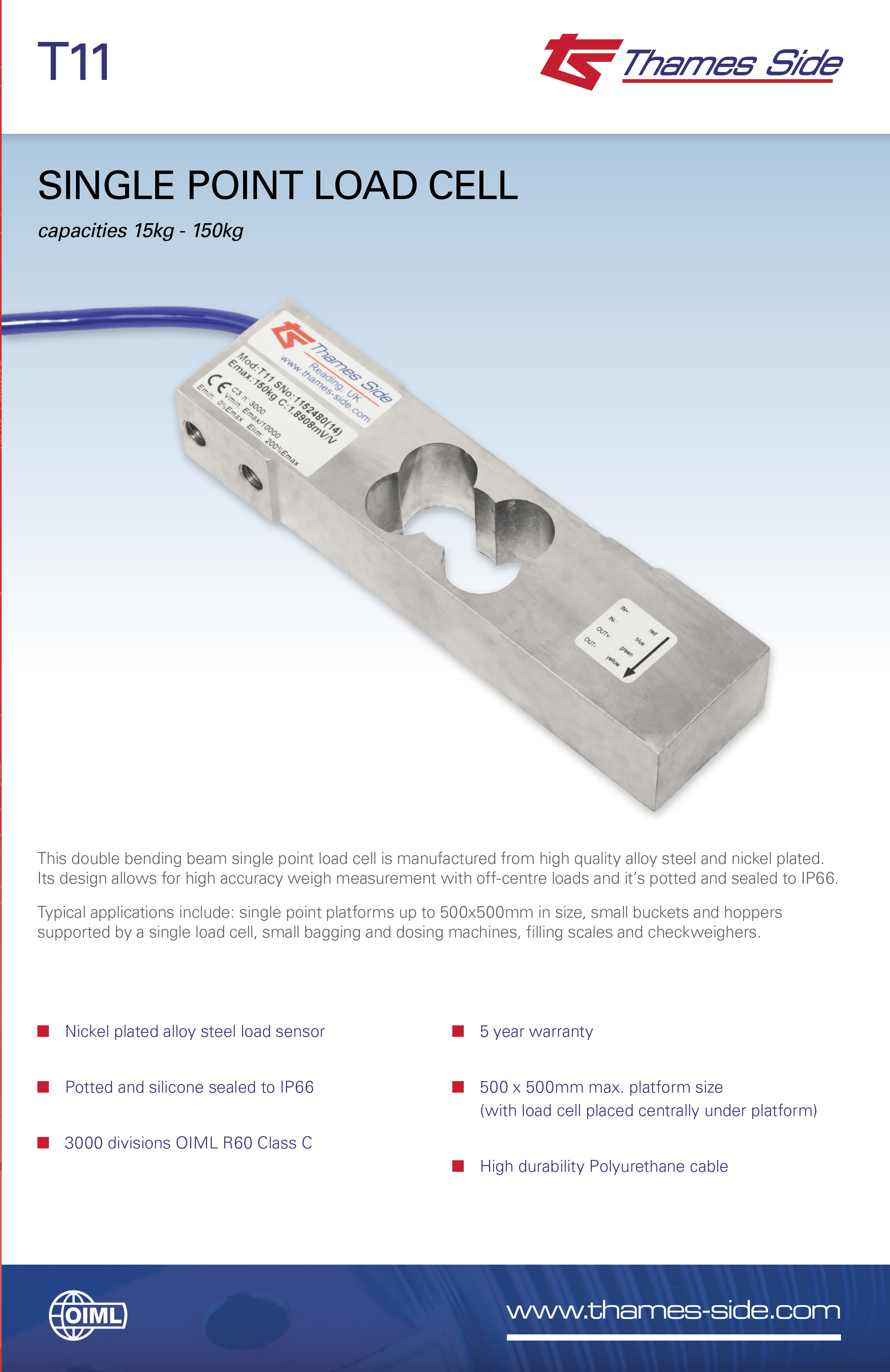

Loadcell THAMES SIDE T11
■ Nickel plated alloy steel load sensor
■ Potted and silicone sealed to IP66
■ 3000 divisions OIML R60 Class C
■ High durability Polyurethane cable
| Model | T11 | |
| Rated Capacity (kgf) | 15, 20, 30, 50, 75, 100, 150 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | 3000 | |
| Rate Output mV/V | 2 ± 10% | |
| Zero balance %RO | ± 2 | |
| Combiner Error %RO | ± 0.017 | |
| Non -Repeatability %RO | ± 0.01 | |
| Zero Creep for 30min %RO | ± 0.016 | |
| Temp. Effect on Zero Balance %S/0C | ± 0.002 | |
| Temp. Effect on Span %S/ 0C | ± 0.0012 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -20 ~ +70 | |
| Material | Nickel plated alloy steel | |
| Cable Specification | ø 5.7 x 4P x 3m | |
| IP | 66 | |
