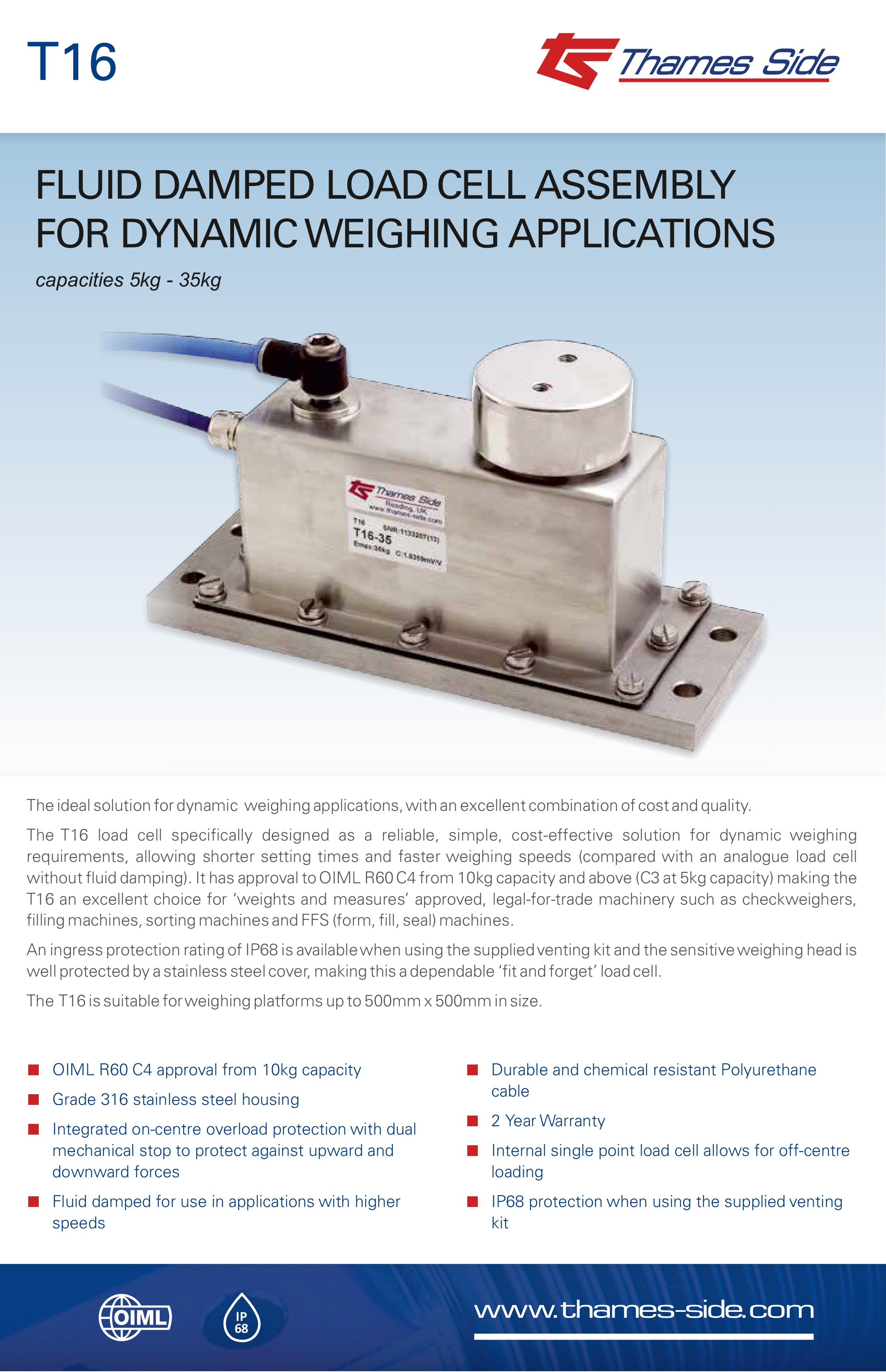

Loadcell THAMES SIDE T16
■ OIML R60 C4 approval from 10kg capacity
■ Grade 316 stainless steel housing
■ Integrated on – centre overload protection with dual mechanical stop to protect against upward and downward forces
■ Fluid damped for use in applications with higher speeds
■ Durable and chemical resistant Polyurethane cable
■ Internal single point loadcell allows for off centre loading
■ IP 68 protection when using the supplied venting kit
| Model | T16 | |
| Rated Capacity (kgf) | 5, 7.5, 10, 15. 20. 30, 35 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | 4000 | |
| Rate Output mV/V | 2 ± 10% | |
| Zero balance %RO | ± 2 | |
| Combiner Error %RO | ± 0.013 | |
| Non -Repeatability %RO | ± 0.01 | |
| Zero Creep for 30min %RO | ± 0.012 | |
| Temp. Effect on Zero Balance %S/0C | ± 0.002 | |
| Temp. Effect on Span %S/ 0C | ± 0.0012 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | 0 ~ +50 | |
| Operating Temperature Range 0C | -20 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø 5.7 x 6P x 5m | |
| IP | 66 (IP 68 with venting kit fitted) | |
