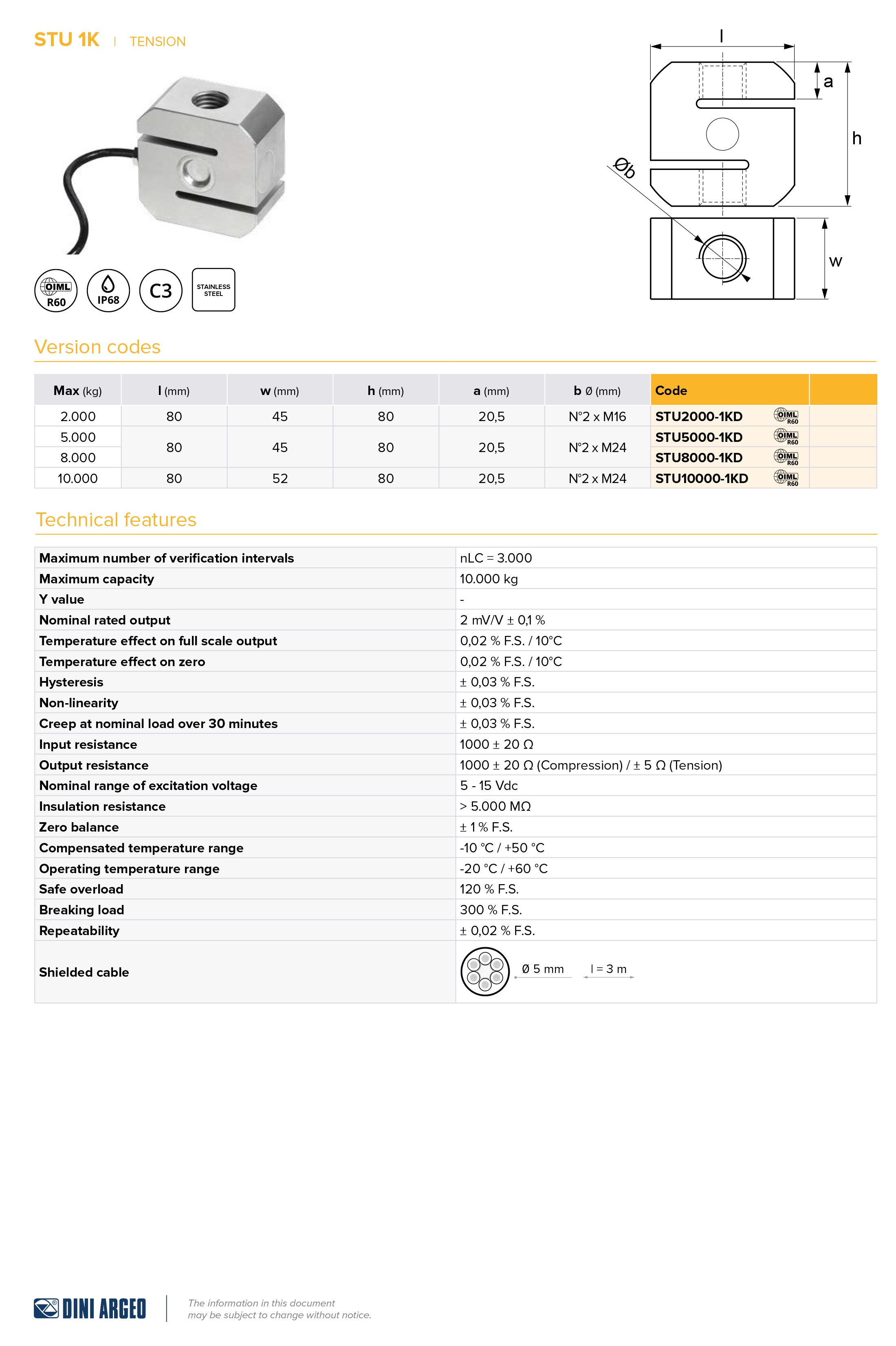

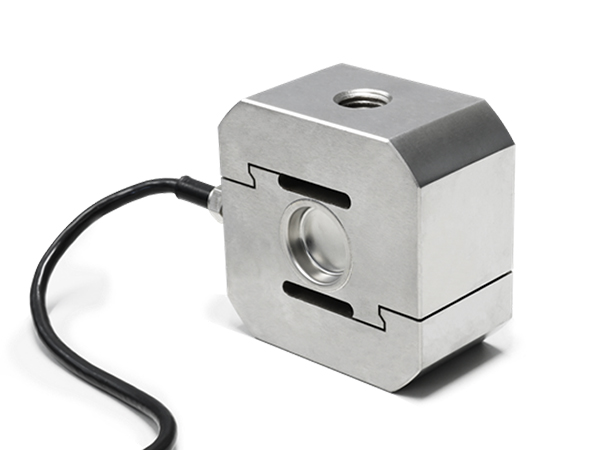

Loadcell DINI ARGEO STU-1K
C3 PRECISION CLASS
STAINLESS STEEL CONSTRUCTION
IP68 PROTECTION LEVEL
MAX. CAPACITIES FROM 2000 TO 10000 kg
3m SHIELDED CONNECTION CABLE
| Model | STU-1K | |
| Rated Capacity (kgf) | 2000, 5000, 8000, 10000 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Creep Error (30 minutes) %RO | ± 0.03 | |
| Nonlinearity %RO | ± 0.03 | |
| Hysteresis %RO | ± 0.03 | |
| Repeatability %RO | ± 0.02 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 120 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 1000 ± 20 |
| Output (Ω) | 1000 ± 20 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +50 | |
| Operating Temperature Range 0C | -20 ~ +60 | |
| Material | Stainless steel | |
| Cable Specification | ø5.0 x 6P x 3m | |
| IP | 68 | |
