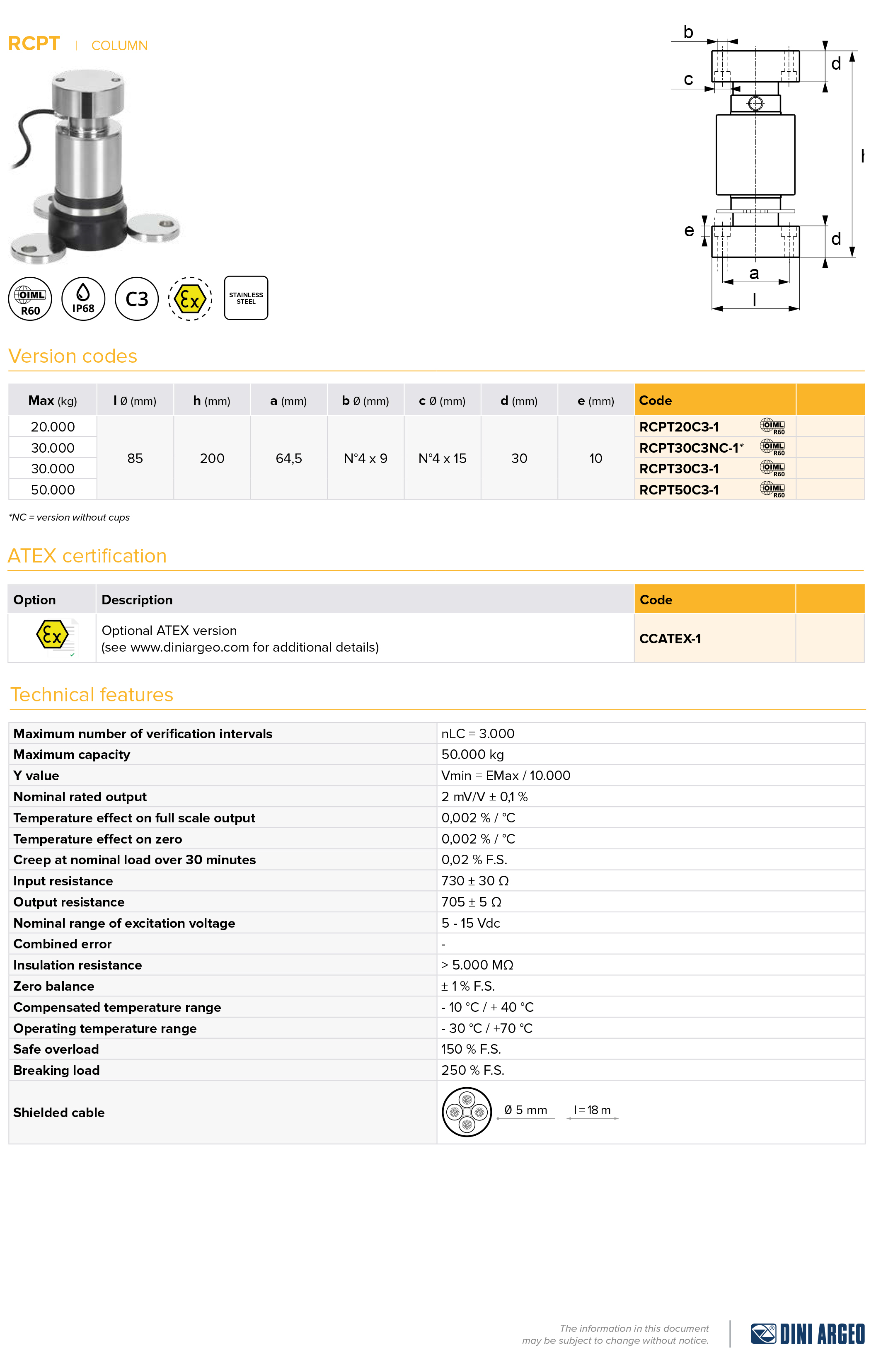

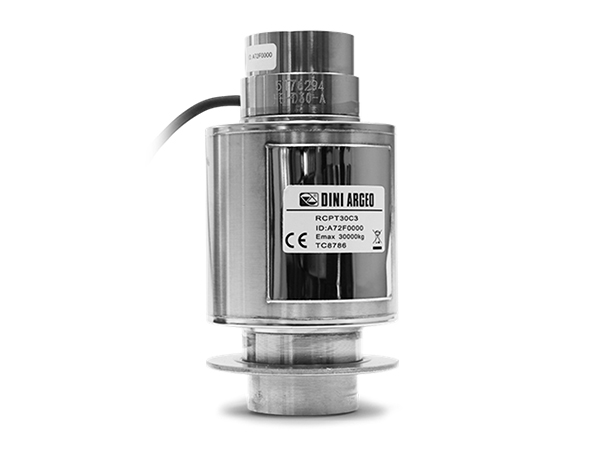

Loadcell DINI ARGEO RCPT
C3 PRECISION CLASS.
SPECIAL ALLOY STEEL BODY with STAINLESS STEEL EXTERNAL CASING; MANUFACTURED WITH LASER SOLDERINGS.
OPTIMISED FOR PARALLEL CONNECTION.
IP68 PROTECTION RATING.CAPACITY FROM 20000 TO 50000 kg.
SHIELDED 18m CONNECTION CABLE.
TEST CERTIFICATE AVAILABLE UPON REQUEST.
FITTED WITH SELF-ALIGNED ARTICULATED JOINTS, SELFCENTERING PLATES AND PROTECTION WASHER (version with cups)
| Model | RCPT | |
| Rated Capacity (kgf) | 20000, 30000, 50000 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Creep Error (30 minutes) %RO | ± 0.02 | |
| Nonlinearity %RO | ± 0.02 | |
| Hysteresis %RO | ± 0.02 | |
| Repeatability %RO | ± 0.01 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 250 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 730 ± 30 |
| Output (Ω) | 705 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +70 | |
| Material | Nickel Plated alloy steel ( Option Stainless steel) | |
| Cable Specification | ø5.0 x 4P x 18m | |
| IP | 68 | |
