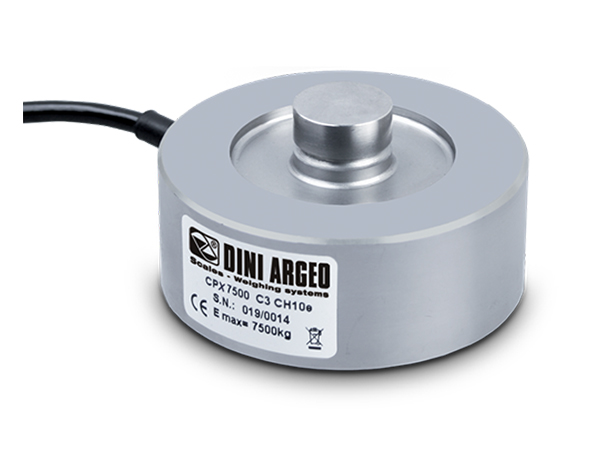

Loadcell DINI ARGEO CPX
CAPACITIES FROM 250 TO 100000 kg
CE-M C3 APPROVED, from 2500 to 12500 kg
LOW PROFILE
GREAT RESISTANCE TO LATERAL FORCES
STAINLESS STEEL CONSTRUCTION
IP68 PROTECTION, IP69K UPON REQUEST
SHIELDED CONNECTION CABLE
| Model | CPX | |
| Rated Capacity (kgf) | 250, 500kgf, 1, 2.5, 5, 7.5, 10, 12.5, 15, 30, 50, 100tf | |
| Accuracy Class | C3 -3000 | |
| Rate Output mV/V | 2.0 ± 0.5% | |
| Creep Error (30 minutes) %RO | ± 0.02 | |
| Nonlinearity %RO | ± 0.05 | |
| Hysteresis %RO | ± 0.05 | |
| Repeatability %RO | ± 0.02 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 120 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 750 ± 10 |
| Output (Ω) | 700 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +50 | |
| Operating Temperature Range 0C | -20 ~ +60 | |
| Material | Stainless steel | |
| Cable Specification | ø5.0 x 4P x 5m – 10m | |
| IP | 68/69k | |
