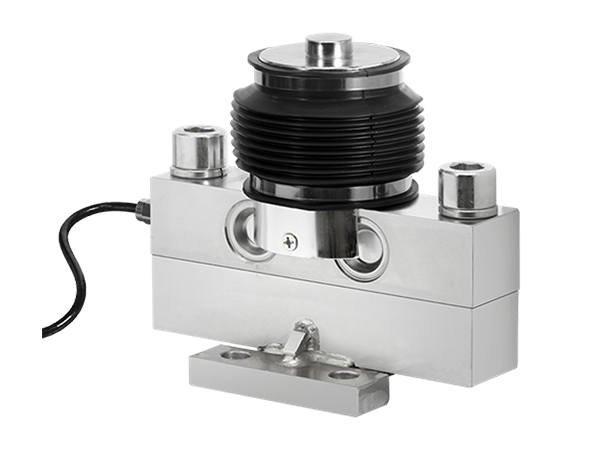

Loadcell DINI ARGEO RSBT
C3 PRECISION CLASS;
EXECUTED IN NICKEL-PLATED STEEL WITH LASER SOLDERINGS;
HIGH PRECISION AND LINEARITY ALSO WITH NON PERPENDICULAR LOADS;
OPTIMISED FOR PARALLEL CONNECTION;
IP68 PROTECTION DEGREE;
CAPACITY FROM 25000 TO 40000kg;
SHIELDED TEFLON CONNECTION CABLE;
TEST CERTIFICATE AVAILABLE UPON REQUEST.
| Model | RSBT | |
| Rated Capacity (kgf) | 25000, 30000, 40000 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.2% | |
| Creep Error (30 minutes) %RO | ± 0.02 | |
| Nonlinearity %RO | ± 0.02 | |
| Hysteresis %RO | ± 0.02 | |
| Repeatability %RO | ± 0.01 | |
| Zero Balance %RO | ± 1.5 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 750 |
| Output (Ω) | 700 ± 7 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -35 ~ +65 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø6.0 x 6P x 15m | |
| IP | 68 | |
