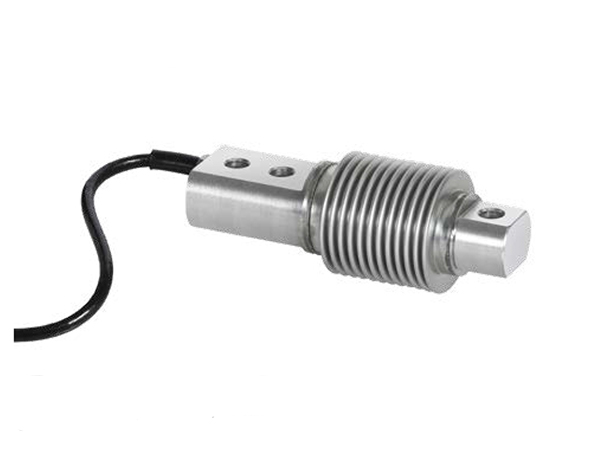

Loadcell DINI ARGEO FXD
C3 PRECISION CLASS
STAINLESS STEEL
IP68 PROTECTION
MAX. CAPACITIES FROM 10 TO 500 kg
SHIELDED CONNECTION CABLE
OIML CERTIFICATE AVAILABLE UPON REQUEST
TEST CERTIFICATE AVAILABLE UPON REQUEST
| Model | FXD | |
| Rated Capacity (kgf) | 10, 20, 50, 100, 200, 300, 500 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Creep Error (30 minutes) %RO | ± 0.012 | |
| Nonlinearity %RO | ± 0.02 | |
| Hysteresis %RO | ± 0.02 | |
| Repeatability %RO | ± 0.01 | |
| Zero Balance %RO | ±1.0 | |
| Safe Overload % Emax | 120 | |
| Maximum Overload % Emax | 150 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 385 ± 10 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +50 | |
| Operating Temperature Range 0C | -20 ~ +60 | |
| Material | Stainless steel | |
| Cable Specification | ø5.0 x 4P x 3m | |
| IP | 68 | |
