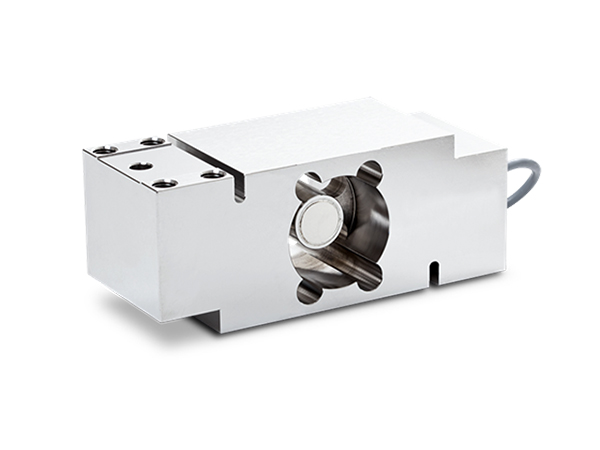

Loadcell DINI ARGEO SPSZ
C3 PRECISION CLASS
OFF CENTER LOAD COMPENSATED
MADE IN 17-4 PH STAINLESS STEEL
IP68 PROTECTION
MAX. CAPACITIES FROM 500 TO 1000 kg
FOR PLATFORMS WITH DIMENSIONS UP TO 800 X 800 mm
SHIELDED CONNECTION CABLE
TEST CERTIFICATE AVAILABLE UPON REQUEST

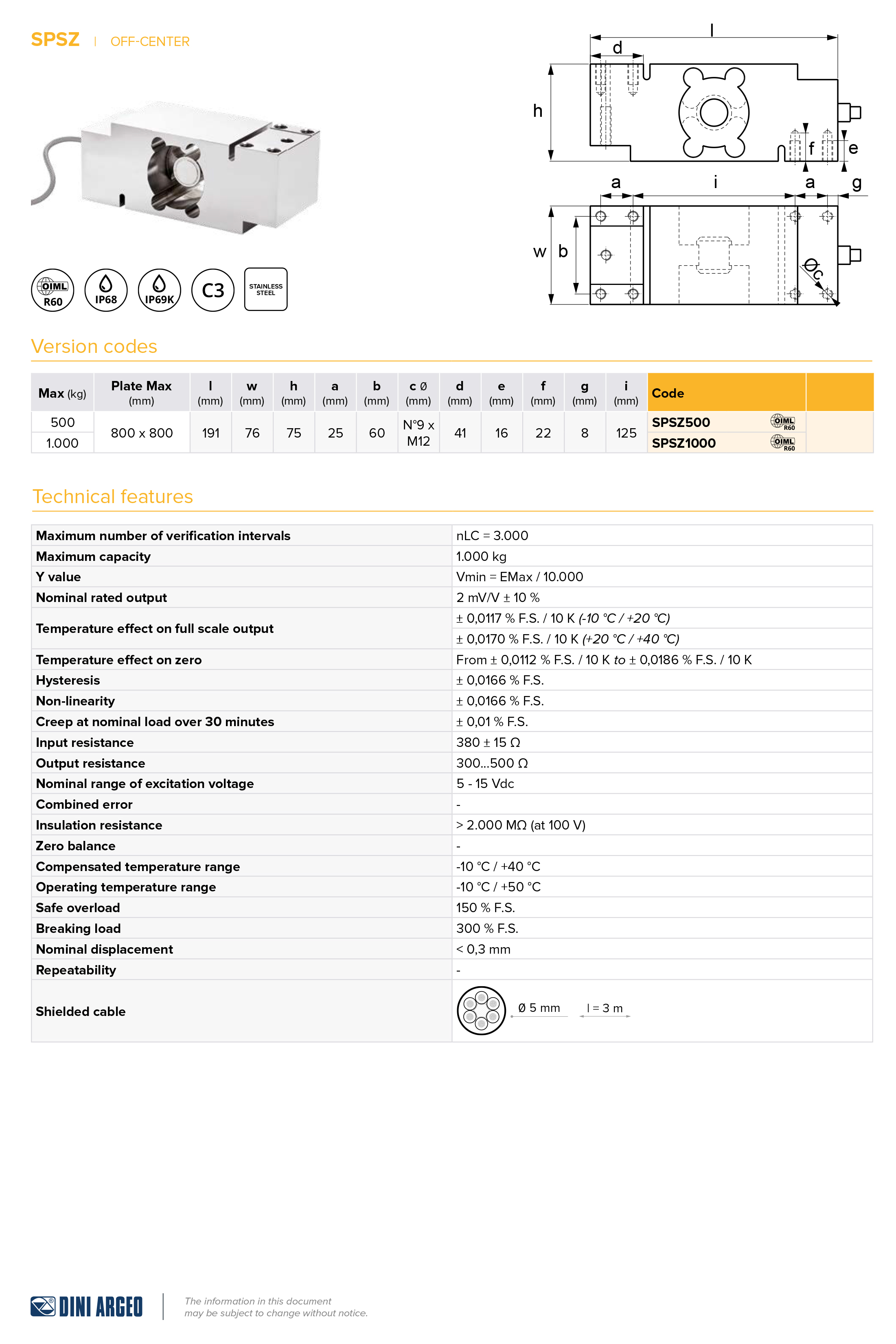

| Model | SPSZ | |
| Rated Capacity (kgf) | 500, 1000 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 10% | |
| Creep Error (30 minutes) %RO | ± 0.01 | |
| Nonlinearity %RO | ± 0.0166 | |
| Hysteresis %RO | ± 0.0166 | |
| Repeatability %RO | ± 0.3 | |
| Zero Balance %RO | – | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 380 ± 15 |
| Output (Ω) | 300 ~ 500 | |
| Insulation (MΩ) | > 2.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +50 | |
| Material | Stainless steel | |
| Cable Specification | ø5.0 x 6P x 3m | |
| IP | 68 | |
