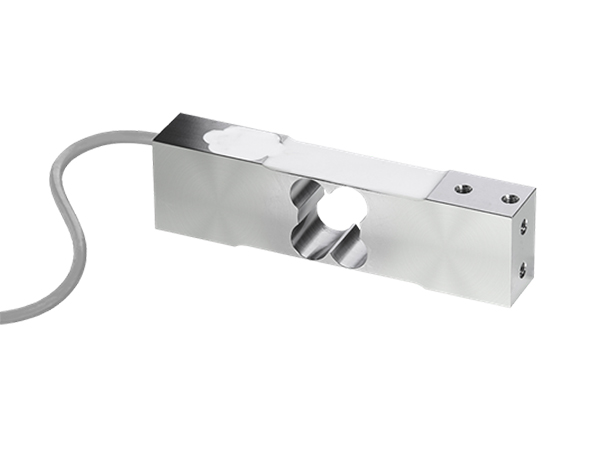

Loadcell DINI ARGEO SPSW
C3 PRECISION CLASS
OFF CENTER LOAD COMPENSATED
MADE IN 17-4 PH STAINLESS STEEL
IP67 PROTECTION
MAX. CAPACITIES FROM 7.5 TO 200 kg
FOR PLATFORMS WITH DIMENSIONS UP TO 500 X 400 mm
SHIELDED CONNECTION CABLE
TEST CERTIFICATE AVAILABLE UPON REQUEST

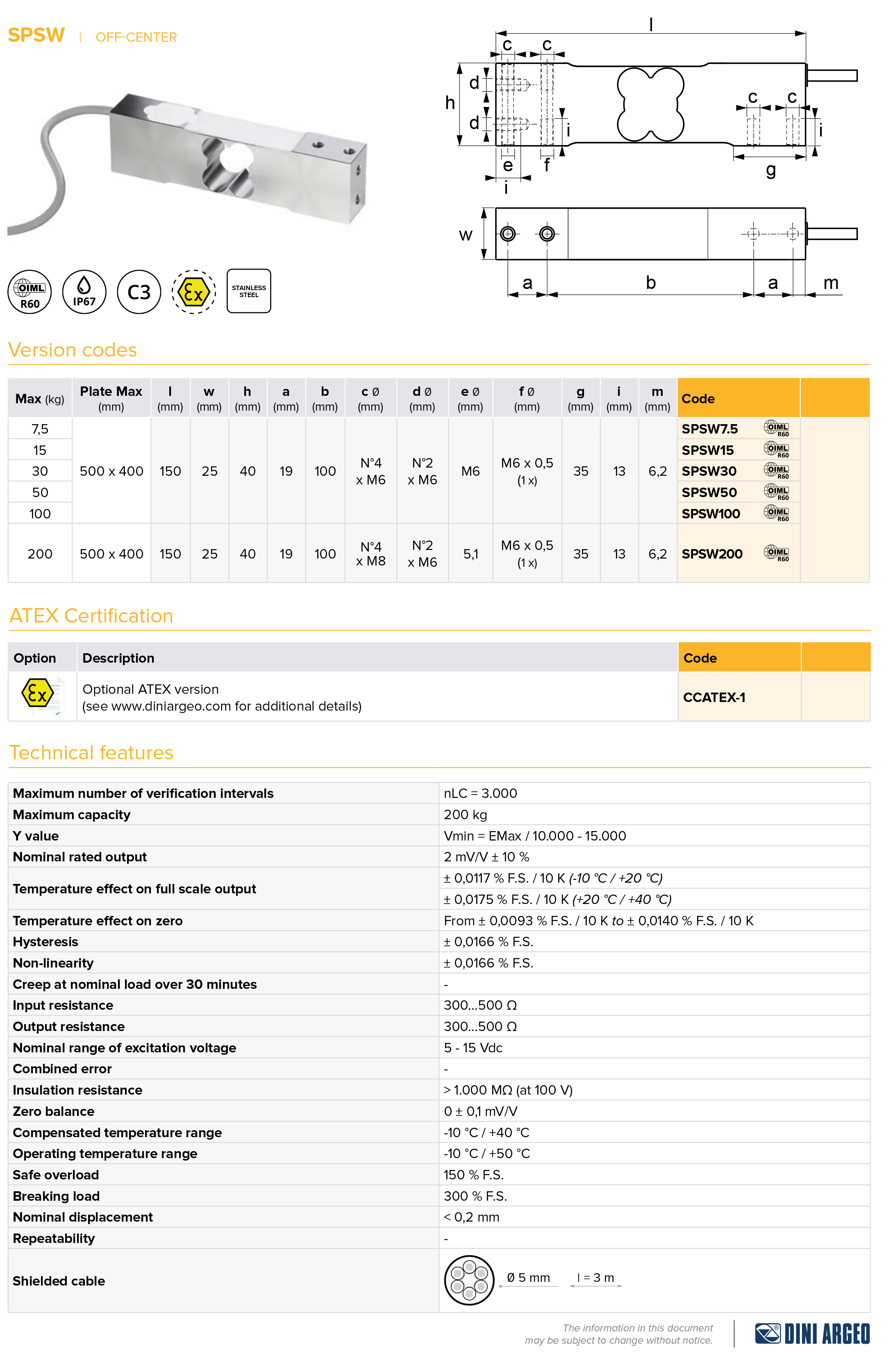

| Model | SPSW | |
| Rated Capacity (kgf) | 7.5, 15, 30, 50, 100, 200 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 10% | |
| Creep Error (30 minutes) %RO | – | |
| Nonlinearity %RO | ± 0.0166 | |
| Hysteresis %RO | ± 0.0166 | |
| Repeatability %RO | – | |
| Zero Balance %RO | 0.1 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 15 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 300 ~ 500 |
| Output (Ω) | 300 ~ 500 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +50 | |
| Material | Stainless steel | |
| Cable Specification | ø5.0 x 6P x 3m | |
| IP | 67 | |
