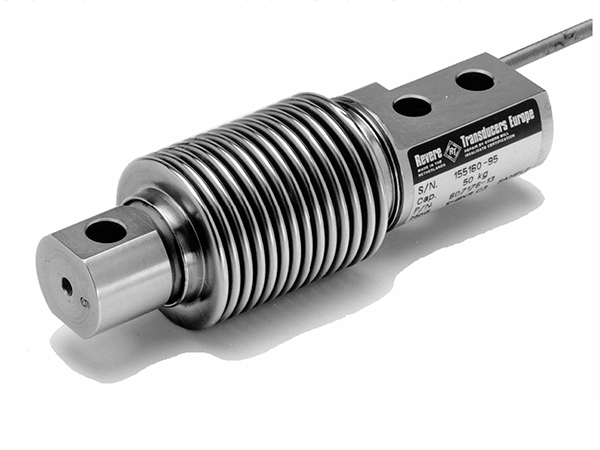

Loadcell VISHAY REVERE SHB
• Fully welded, stainless steel construction
• Hermetically sealed, IP66 and IP68
• Certified to OIML R-60, 4000d
• ATEX certified versions are availablefor use in potentially explosiveatmospheres
• Current calibration output (SCversion) ensures easy and accurateparallel connection of multiple loadcells
| Model | SHB | |
| Rated Capacity (kgf) | 5, 10, 20, 30, 50, 100, 200, 350, 500 | |
| Accuracy Class According to OIML-R-60 | C3 | |
| Max. Number of Verification Intervals | 3000 | |
| Minimum Verification interval (Vmin) | Emax 15.000 | |
| Accuracy Accoding to Type Designation | C3 | |
| Combiner Error %RO | ± 0.0200 | |
| Non -Repeatability %RO | ± 0.0100 | |
| Minimum Dead Load Output Return | ± 0.0167 | |
| Zero Creep for 30min %RO | ± 0.0245 | |
| Zero Return for 20 ~ 30min %RO | ± 0.0053 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0047 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0050 | |
| Minium Dead Load % Emax | 0 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Maximum Safe Side Load % Emax | 100 | |
| Deflection at Emax mm | 0.30 ± 0.03 | |
| Rate Output mV/V | 2 | |
| Tolerance on Rate Output mV/V | ± 0.02 | |
| Zero Balance %S | ± 1.0 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 460 ± 50 |
| Output (Ω) | 350 ± 3.5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -40 ~ +80 | |
| Material | Stainless Steel 1.4542 | |
| Cable Specification | ø 6.0 x 6P x 3m | |
| IP | 66 and 68 | |
