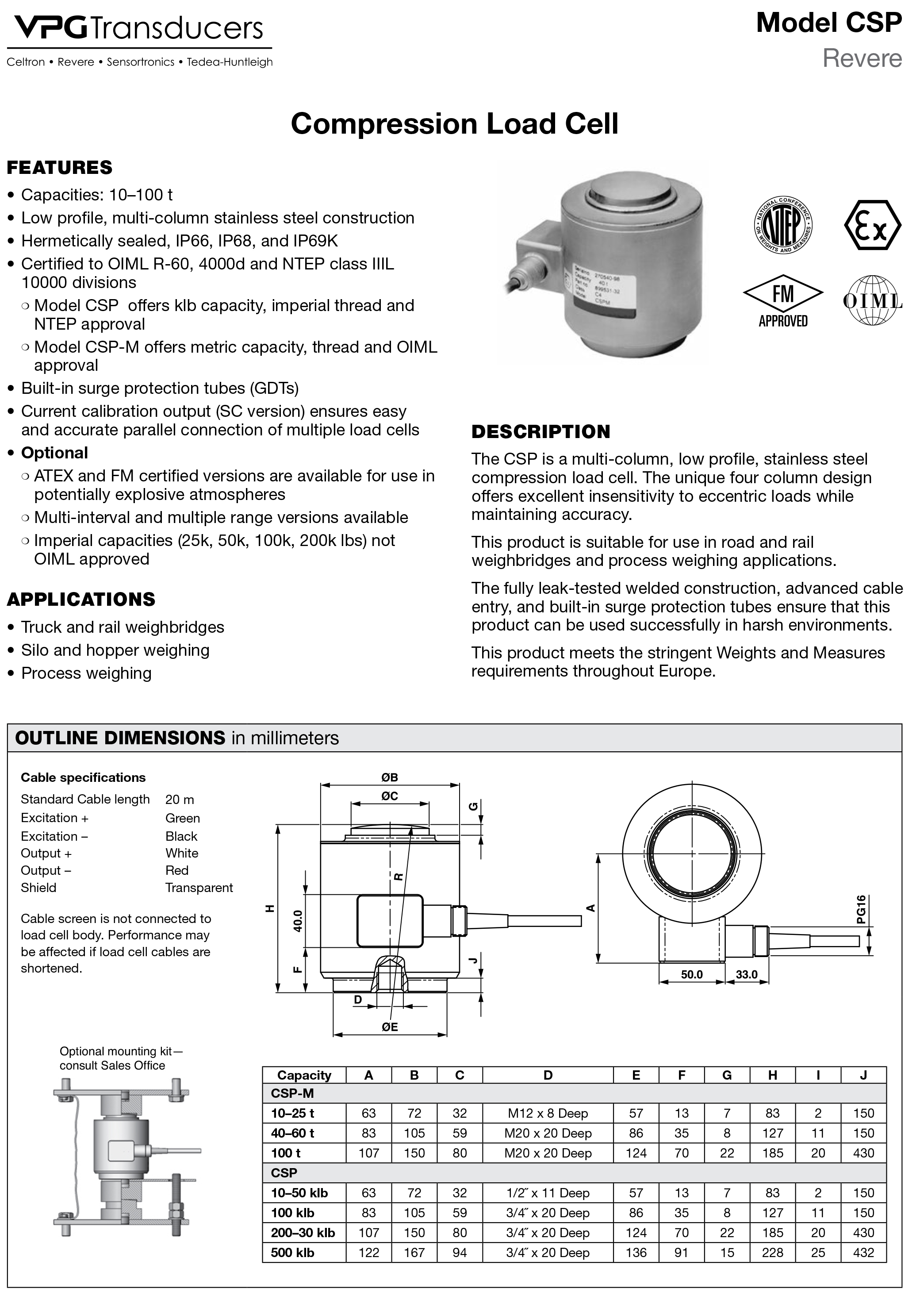

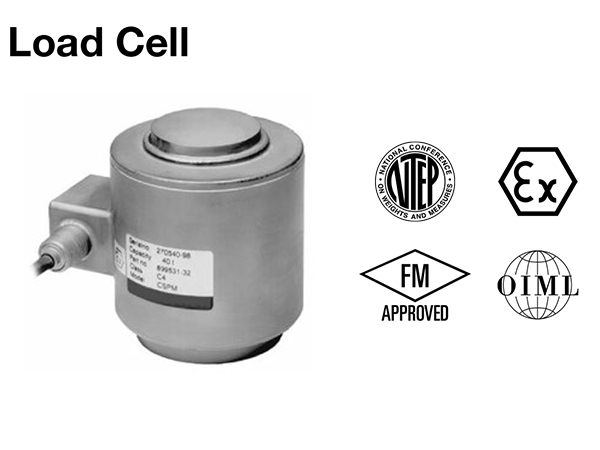

Loadcell VISHAY REVERE CSP
• Capacities: 10–100 t
• Low profile, multi-column stainless steel construction
• Hermetically sealed, IP66, IP68, and IP69K
• Certified to OIML R-60, 4000d and NTEP class IIIL10000 divisions
Model CSP offers klb capacity, imperial thread and NTEP approval
Model CSP-M offers metric capacity, thread and OIML approval
• Built-in surge protection tubes (GDTs)
• Current calibration output (SC version) ensures easyand accurate parallel connection of multiple load cells
Optional
ATEX and FM certified versions are available for use in potentially explosive atmospheres
Multi-interval and multiple range versions available
Imperial capacities (25k, 50k, 100k, 200k lbs) not OIML approved
| Model | CSP | |
| Rated Capacity (tf) | 10, 25, 40, 60, 100tf
10, 25, 40, 50, 60, 75, 100, 150, 200, 300, 500 klb |
|
| Accuracy Class According to OIML-R-60 | C3 | |
| Max. Number of Verification Intervals | 3000 | |
| Minimum Verification interval (Vmin) | Emax 12.500 | |
| Accuracy Accoding to Type Designation | C3 | |
| Combiner Error %RO | ± 0.023 | |
| Non -Repeatability %RO | ± 0.010 | |
| Minimum Dead Load Output Return | ± 0.0167 | |
| Zero Creep for 30min %RO | ± 0.0245 | |
| Zero Return for 20 ~ 30min %RO | ± 0.0011 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0008 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.001 | |
| Minium Dead Load % Emax | 0 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 400 | |
| Maximum Safe Side Load % Emax | 10 | |
| Rate Output mV/V | 2 | |
| Tolerance on Rate Output mV/V | ± 0.02 | |
| Zero Balance %S | ± 1.0 | |
| Excitation Voltage | Recommended (V) | 5 ~ 10 |
| Maximum (V) | 20 | |
| Resistance | Input (Ω) | 450 ± 4.5 |
| Output (Ω) | 480 ± 4.8 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -40 ~ +80 | |
| Material | Stainless Steel 1.4542 | |
| Cable Specification | ø 6.0 x 4P x 20m | |
| IP | 66 and 68 | |
