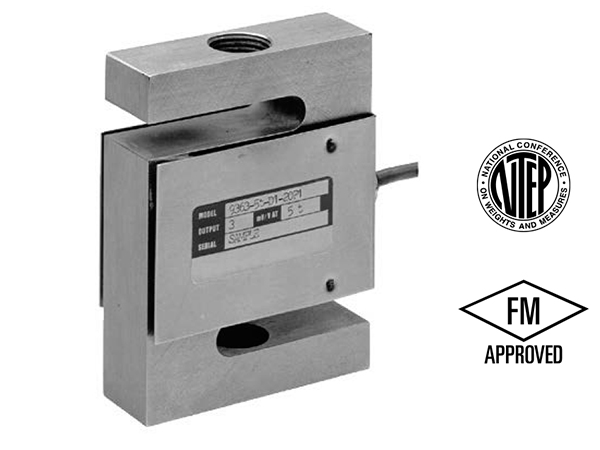

Loadcell VISHAY REVERE 363
Capacities 50 to 10000 kg (50 to 20k lbs)
• Nickel-plated steel construction
• Certified to NTEP class III 3000d and class IIIL 10000d
• Suitable for compression and tension applications
• Trimmed output versions available
• Sealing: IP65
Optional
FM approved for use in potentially explosive atmospheres
| Model | 363 | |
| Rated Capacity (kgf) | 50, 100, 250, 500, 1000, 2500, 5000, 7500, 10000 kgf
50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 2.5k, 5k, 10k, 15k, 20k lbs |
|
| Accuracy Class According to OIML-R-60 | – | |
| Max. Number of Verification Intervals | 3000 | |
| Minimum Verification interval (Vmin) | Emax 10.000 | |
| Accuracy Accoding to Type Designation | – | |
| Combiner Error %RO | ± 0.0200 | |
| Non -Repeatability %RO | ± 0.0100 | |
| Minimum Dead Load Output Return | ± 0.0500 | |
| Zero Creep for 30min %RO | – | |
| Zero Return for 20 ~ 30min %RO | ± 0.0030 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0090 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0072 | |
| Minium Dead Load % Emax | 0 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Maximum Safe Side Load % Emax | 100 | |
| Rate Output mV/V | 3.3 | |
| Tolerance on Rate Output mV/V | ± 0.3 | |
| Zero Balance %S | ± 1.0 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 390 ± 15 |
| Output (Ω) | 350 ± 3.5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +65 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø 8.0 x 4P x 6m | |
| IP | 65 | |
