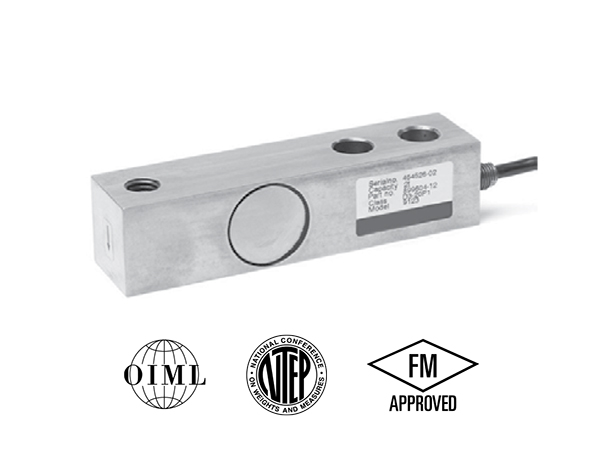

Loadcell VISHAY REVERE 9123
• Capacities: 500–5000 kg, 1k–20k lbs.
• Low profile construction
• Certified to OIML R-60, 4000d and NTEP III, 5000divisions
• Sealing: IP67 (DIN 40.050)
• Stainless steel construction
• Threaded load hole
Optional
FM certified for use in potentially explosive atmosp
| Model | 9123 | |
| Rated Capacity (kgf) | 500, 1000, 2000, 5000 (kgf)
1k, 2.5k, 4k, 5k, 10k, 15k, 20k (lbs) |
|
| Accuracy Class According to OIML-R-60 | C3 | |
| Max. Number of Verification Intervals | 3000 | |
| Minimum Verification interval (Vmin) | Emax 6000 | |
| Accuracy Accoding to Type Designation | C3 | |
| Combiner Error %RO | ± 0.0230 | |
| Non -Repeatability %RO | ± 0.035 | |
| Minimum Dead Load Output Return | ± 0.017 | |
| Zero Creep for 30min %RO | ± 0.025 | |
| Temp. Effect on Min. Dead Load Output %S/5 0C | ± 0.0120 | |
| Temp. Effect on Sensitivity %S/5 0C | ± 0.0070 | |
| Minium Dead Load % Emax | 0 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Maximum Safe Side Load % Emax | 100 | |
| Deflection at Emax mm | 0.4/0.8/1.0/1.1-kgf
0.4/0.8/1.0/0.9/1.1-lbs |
|
| Rate Output mV/V | 3 | |
| Tolerance on Rate Output mV/V | ± 0.003 | |
| Zero Balance %S | 1.0 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 350 ± 3.5 |
| Output (Ω) | 350 ± 3.5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -40 ~ +80 | |
| Material | Stainless Steel | |
| Cable Specification | ø 8.0 x 4P x 6m | |
| IP | 67 | |
