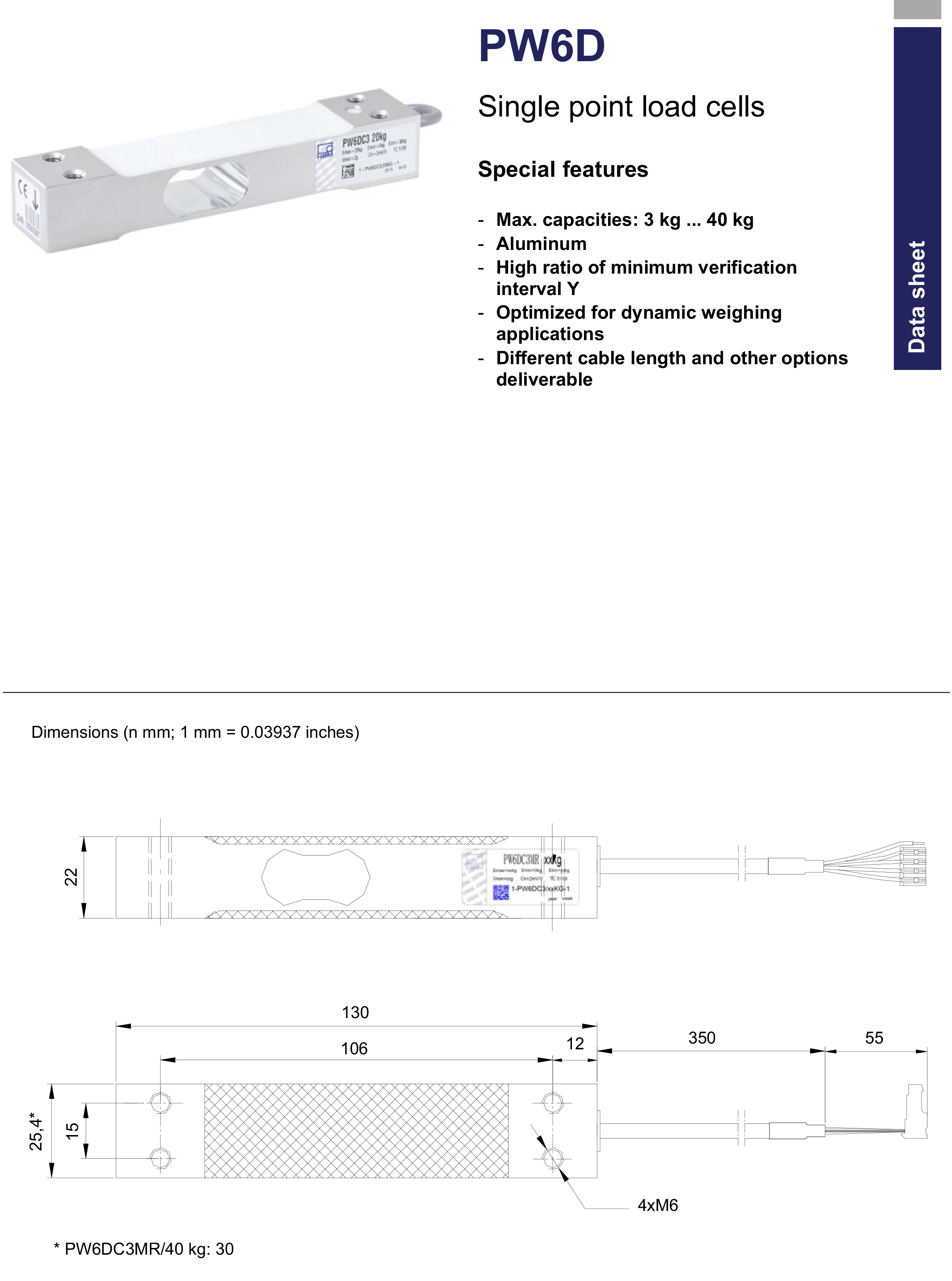

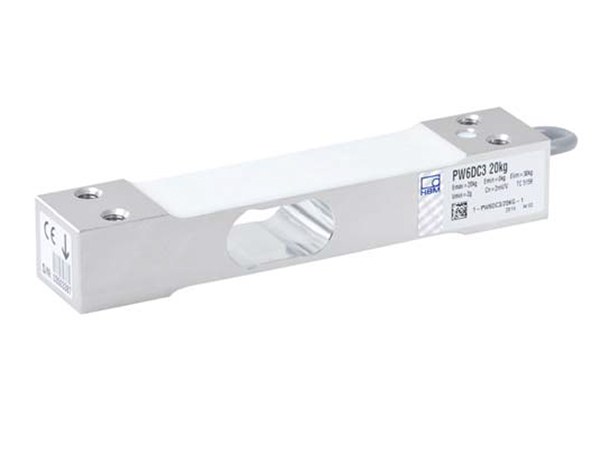

Loadcell HBM PW6D
Max. capacities: 3 kg … 40 kg
Aluminum- High ratio of minimum verificationinterval Y
Optimized for dynamic weighingapplications
Different cable length and other optionsdeliverable
| Model | PW6D | |
| Rated Capacity (kgf) | 3, 5, 10, 15, 20, 30, 40 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | C3 – 3000 | |
| Y= Emax/Vmin | 10.000 | |
| Rate Output mV/V | 2 | |
| Tolerance on Rate Output mV/V | ± 0.2 | |
| Zero signal mV/V | ± 0.1 | |
| Temperature coefficient of sensivity %RO | ± 0.0175 | |
| Relative reversibility Error %RO | ± 0.0166 | |
| Non – linearity %RO | ± 0.0166 | |
| Zero Creep for 30min %RO | ± 0.0166 | |
| Limit Load % Emax | 150 | |
| Limit lateral Loading% Emax | 300 | |
| Breaking Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 |
| Maximum (V) | 12 | |
| Resistance | Input (Ω) | 380 ± 38 |
| Output (Ω) | 380 ± 38 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +50 | |
| Material | Aluminum | |
| Cable Specification | ø 5 x 4P x 0.35m | |
| IP | 67 | |
