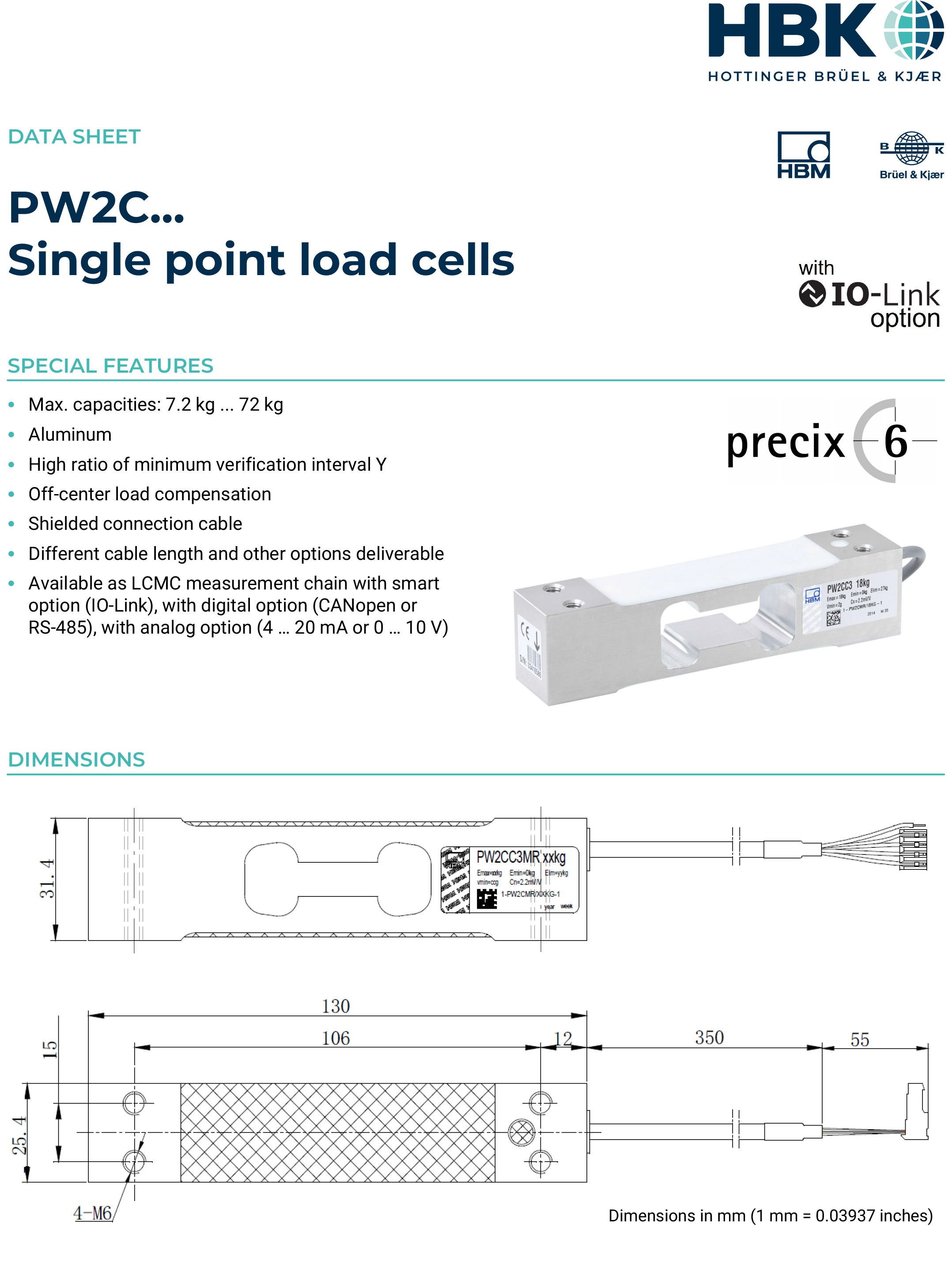

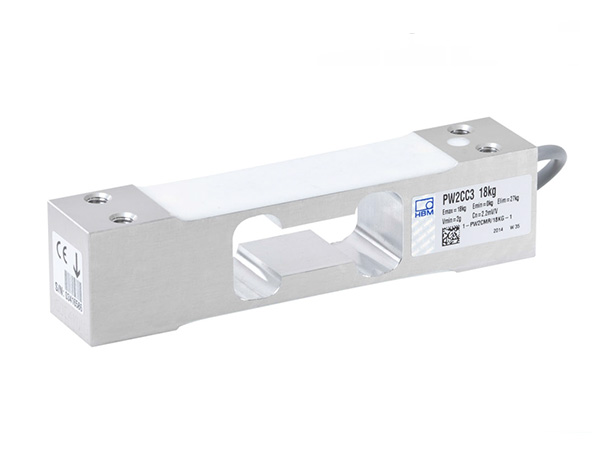

Loadcell HBM PW2C
Max. capacities: 7.2 kg … 72 kg
Aluminum
High ratio of minimum verification interval Y
Optimized for dynamic weighing applications
Shielded connection cable
Different cable lengths and other options available
Available as LCMC measurement chain with smartoption (IO-Link)
With digital option (CANopen or RS-485), with analog option (4 … 20 mA or 0 … 10 V)
| Model | PW2C | |
| Rated Capacity (kgf) | 7.2, 12, 18, 36, 72 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | C3 – 3000 | |
| Y= Emax/Vmin | 10000 | |
| Rate Output mV/V | 2.2 ± 0.2 | |
| Tolerance on Rate Output mV/V | ± 0.12 | |
| Temperature coefficient of sensivity %RO | ± 0.0166 | |
| Relative reversibility Error %RO | ± 0.0166 | |
| Non – linearity %RO | ± 0.0166 | |
| Zero Creep for 30min %RO | ± 0.0175 | |
| Limit Load % Emax | 150 | |
| Limit lateral Loading% Emax | 100 | |
| Breaking Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 |
| Maximum (V) | 12 | |
| Resistance | Input (Ω) | 300 ~ 500 |
| Output (Ω) | 300 ~ 500 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10~ +50 | |
| Material | Aluminum | |
| Cable Specification | ø 5.4 x 6P x 0.35m | |
| IP | 67 | |
