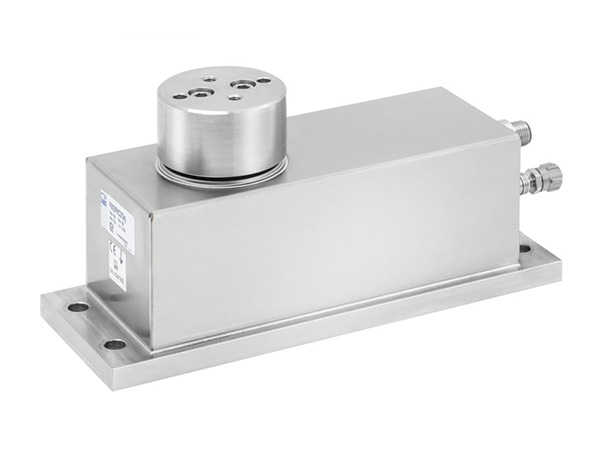

Loadcell HBM PW28
Maximum capacities loads 5 kg…75 kg
Stainless steel (housing)
Optimized for dynamic weighing tasks
Integrated overload protection
High ratio of minimum verification interval Y
Compensated off-center load error
Connector plug M12
| Model | PW28 | |
| Rated Capacity (kgf) | 5, 10, 20, 30, 50, 75 | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | C3 – 3000 | |
| Y= Emax/Vmin | 10000 | |
| Rate Output mV/V | 2.0 ± 0.2 | |
| Tolerance on Rate Output mV/V | ± 0.2 | |
| Temperature coefficient of sensivity %RO | ± 0.0175 | |
| Relative reversibility Error %RO | ± 0.0166 | |
| Non – linearity %RO | ± 0.0166 | |
| Zero Creep for 30min %RO | ± 0.0175 | |
| Limit Load % Emax | 150 | |
| Limit lateral Loading% Emax | 100 | |
| Breaking Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 |
| Maximum (V) | 12 | |
| Resistance | Input (Ω) | 300 ~ 500 |
| Output (Ω) | 300 ~ 500 | |
| Insulation (MΩ) | > 1.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -10 ~ +50 | |
| Material | Aluminum | |
| Cable Specification | ø 5.4 x 6P x 3m | |
| IP | 66 | |
