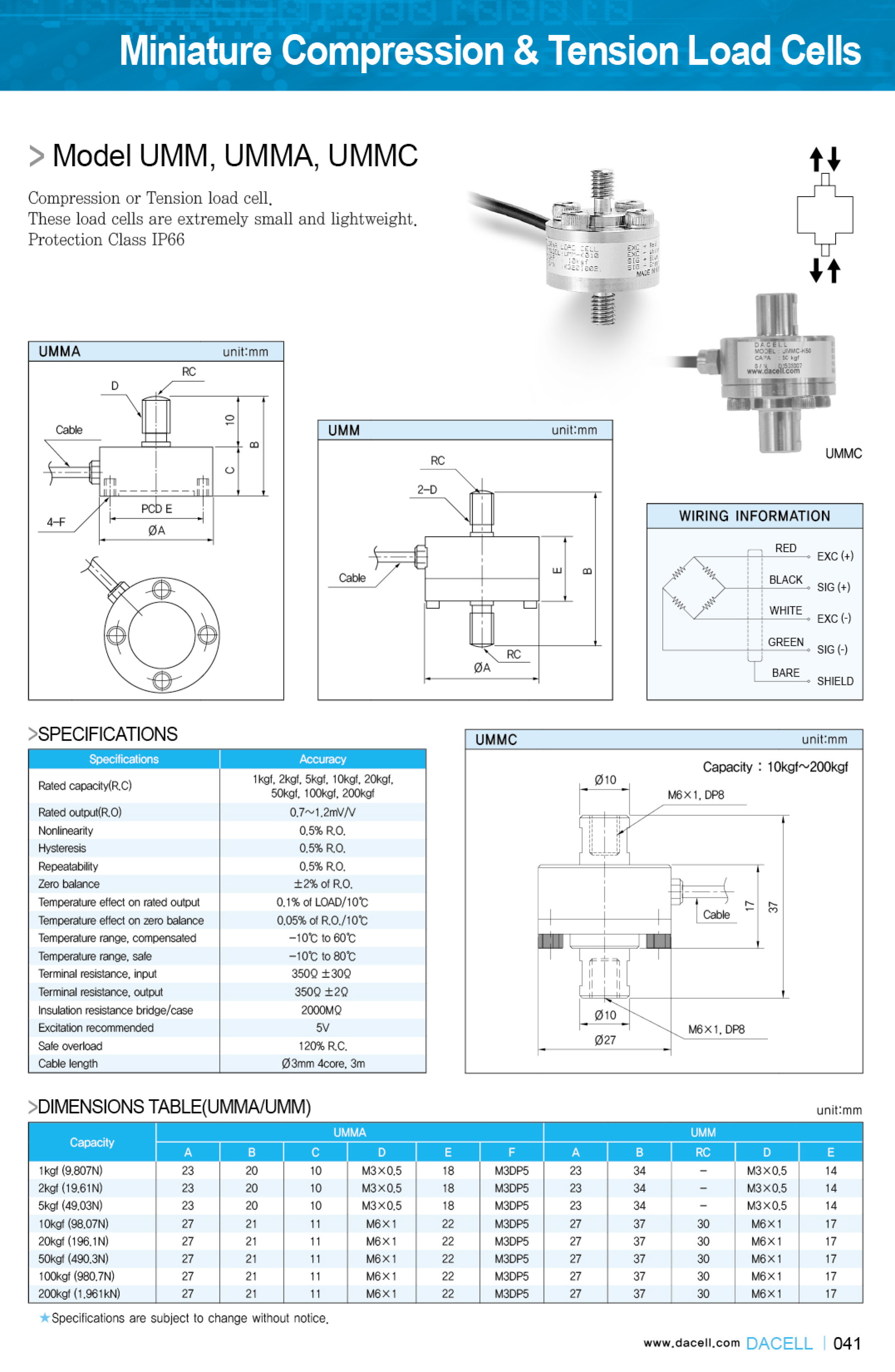

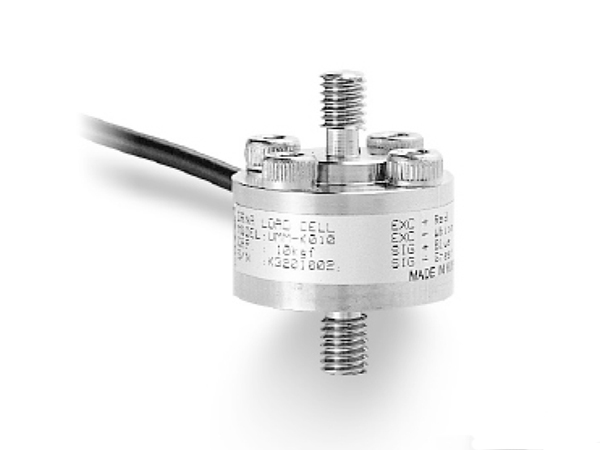

Loadcell DACELL UMM
Compression or Tension load cell.
These load cells are extremely small and lightweight.
Protection Class IP66
| Model | UMM | |
| Rated Capacity (kgf) | 1, 2, 5, 10, 20, 50, 100, 200 | |
| Accuracy Class | C3 -3000 | |
| Rate Output mV/V | 0.7 ~ 1.2 | |
| Creep Error (30 minutes) %RO | – | |
| Nonlinearity %RO | ± 0.5 | |
| Hysteresis %RO | ± 0.5 | |
| Repeatability %RO | ± 0.5 | |
| Zero Balance %RO | ± 2.0 | |
| Safe Overload % Emax | 120 | |
| Excitation Voltage | Recommended (V) | 5 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 350 ± 30 |
| Output (Ω) | 350 ± 2 | |
| Insulation (MΩ) | > 2.000 | |
| Compensated Temperature Range 0C | -10 ~ +60 | |
| Operating Temperature Range 0C | -10 ~ +80 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø3.0 x 4P x 3m | |
| IP | 66 | |
