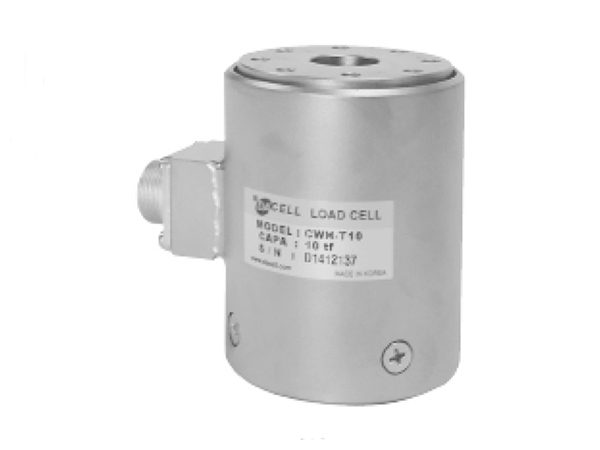

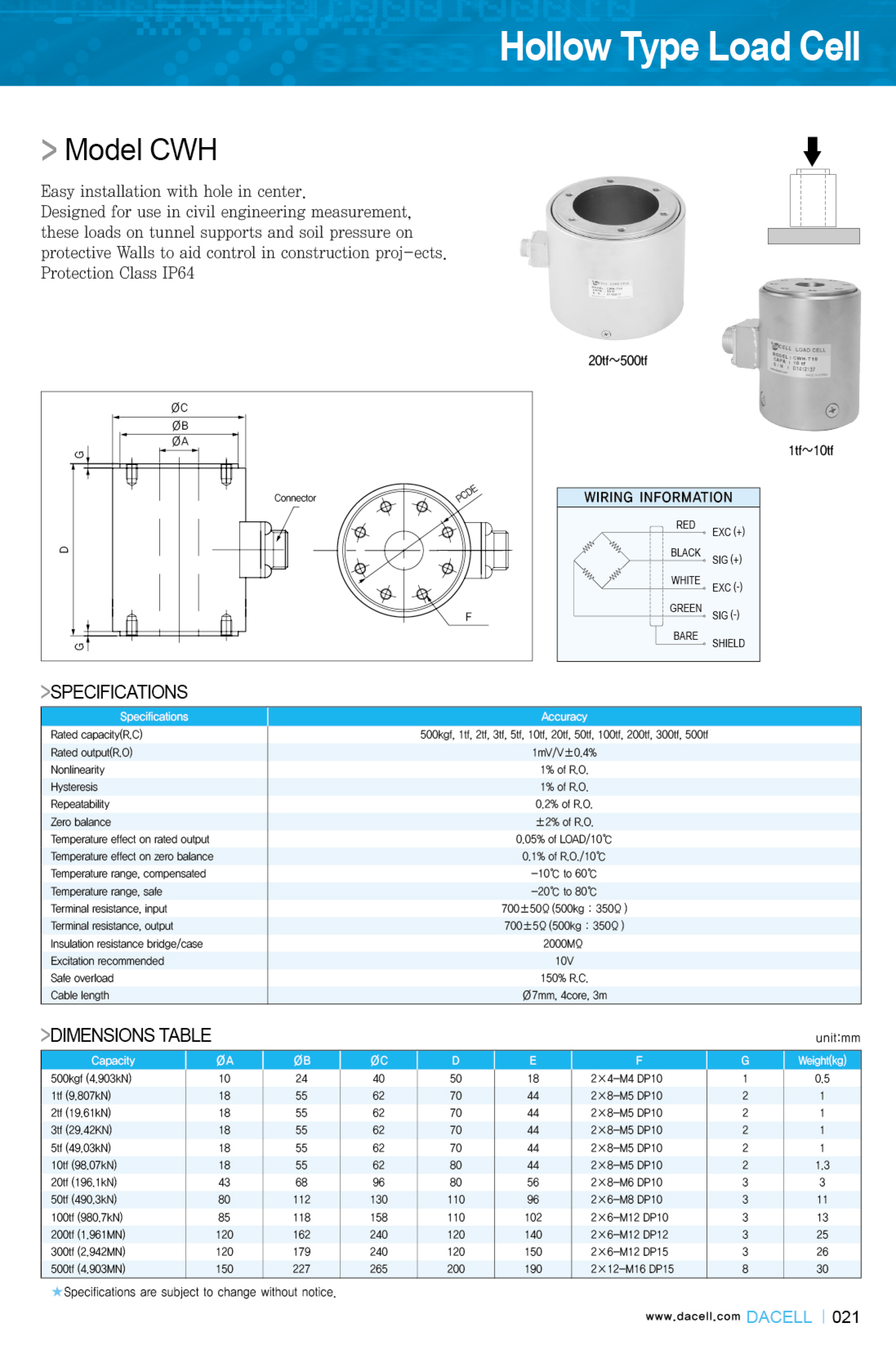

Loadcell DACELL CWH
Easy installation with hole in center.
Designed for use in civil engineering measurement.
These loads on tunnel supports and soil pressure on protective Walls to aid control in construction proj-ects.
Protection Class IP64
| Model | CWH | |
| Rated Capacity (tf) | 500kgf, 1, 2, 5, 10, 20, 30, 50, 100, 200, 300, 500tf | |
| Accuracy Class | C3 -3000 | |
| Rate Output mV/V | 1.0 ± 0.4% | |
| Creep Error (30 minutes) %RO | – | |
| Nonlinearity %RO | ± 1 | |
| Hysteresis %RO | ± 1 | |
| Repeatability %RO | ± 0.2 | |
| Zero Balance %RO | ± 2.0 | |
| Safe Overload % Emax | 150 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 700 ± 50 |
| Output (Ω) | 700 ± 5 | |
| Insulation (MΩ) | > 2.000 | |
| Compensated Temperature Range 0C | -10 ~ +60 | |
| Operating Temperature Range 0C | -20 ~ +80 | |
| Material | Nickel plated alloy steel | |
| Cable Specification | ø7.0 x 4P x 3m | |
| IP | 64 | |
