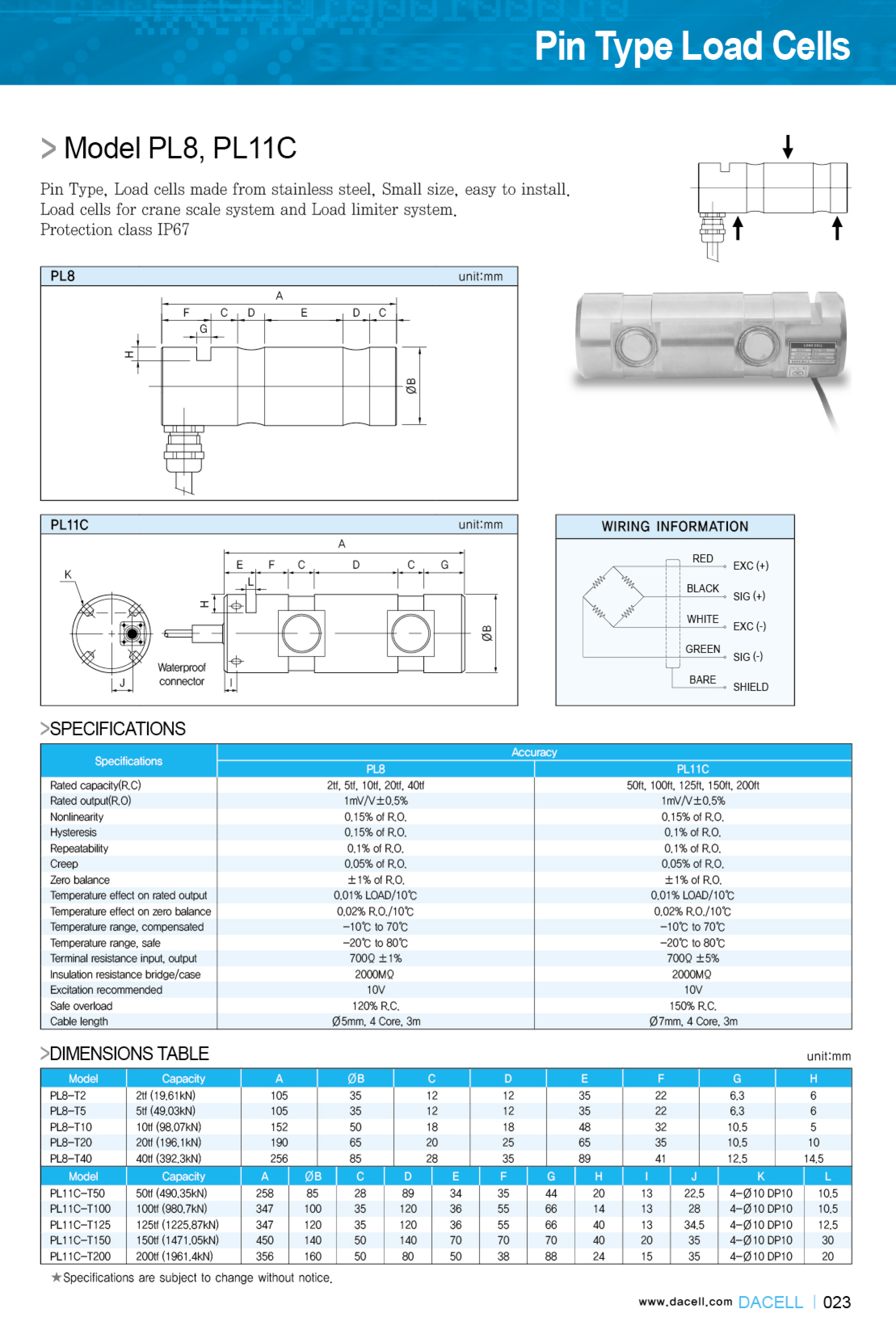

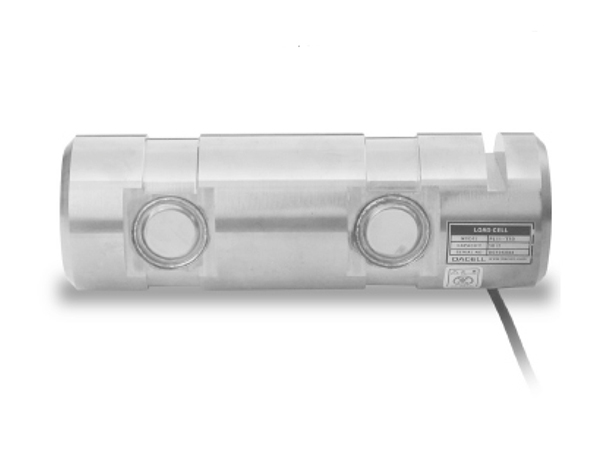

Loadcell DACELL PL8
Pin Type, Load cells made from stainless steel, Small size, easy to install.
Load cells for crane scale system and Load limiter system.
Protection class IP67
| Model | PL8 | |
| Rated Capacity (tf) | 2, 5, 10, 20, 40 | |
| Accuracy Class | C3 -3000 | |
| Rate Output mV/V | 1.0 ± 0.5% | |
| Creep Error (30 minutes) %RO | ± 0.05 | |
| Nonlinearity %RO | ± 0.15 | |
| Hysteresis %RO | ± 0.15 | |
| Repeatability %RO | ± 0.1 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 120 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 700 ± 1 |
| Output (Ω) | 700 ± 1 | |
| Insulation (MΩ) | > 2.000 | |
| Compensated Temperature Range 0C | -10 ~ +70 | |
| Operating Temperature Range 0C | -20 ~ +80 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø5.0 x 4P x 3m | |
| IP | 67 | |
