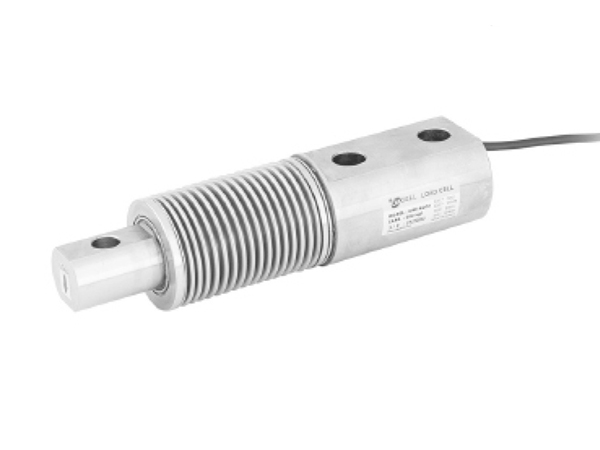

Loadcell DACELL CBC
Stainless steel bellows seal.
Compact, lightweight and easy-to-mount
Protection Class IP67
| Model | CBC | |
| Rated Capacity (kgf) | 10, 20, 50, 100, 200, 500 | |
| Accuracy Class | C3 -3000 | |
| Rate Output mV/V | 2.0 ± 10% | |
| Creep Error (30 minutes) %RO | – | |
| Nonlinearity %RO | ± 0.02 | |
| Hysteresis %RO | ± 0.02 | |
| Repeatability %RO | ± 0.02 | |
| Zero Balance %RO | ± 5.0 | |
| Safe Overload % Emax | 150 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 350 ± 50 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 2.000 | |
| Compensated Temperature Range 0C | -10 ~ +60 | |
| Operating Temperature Range 0C | -20 ~ +80 | |
| Material | Stainless steel | |
| Cable Specification | ø5.4 x 4P x 3m | |
| IP | 67 | |
