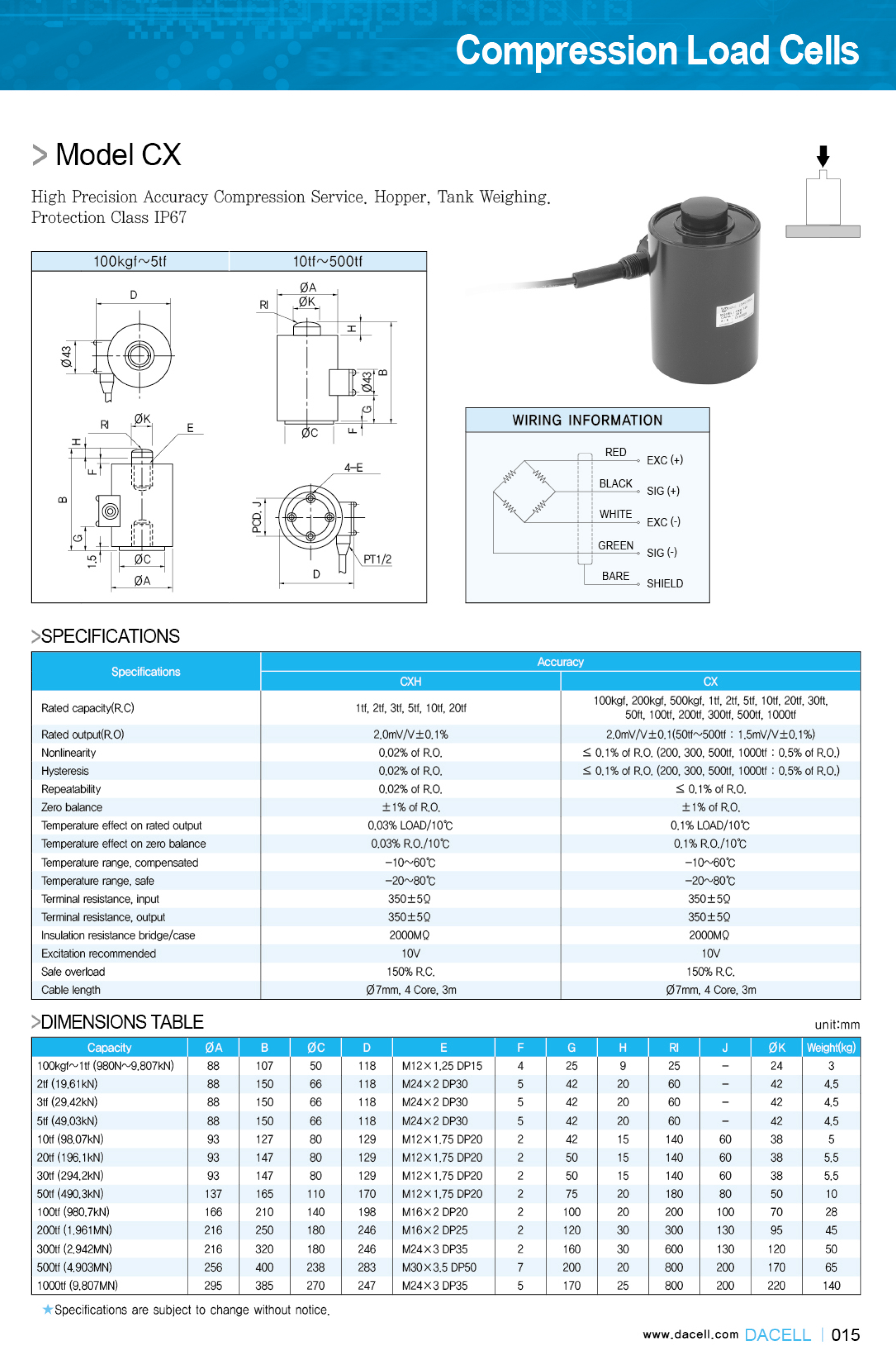

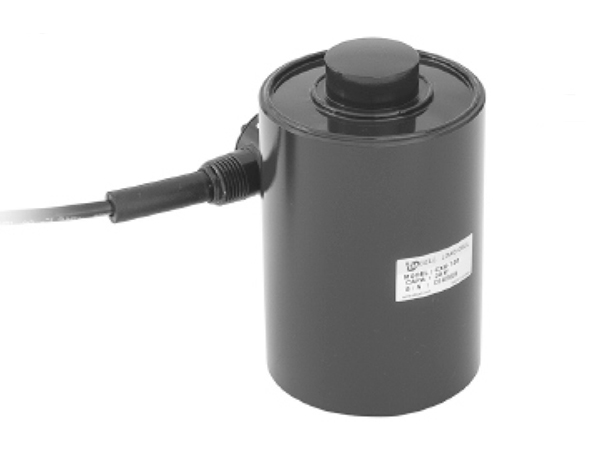

Loadcell DACELL CX
High Precision Accuracy
Compression Service, Hopper, Tank Weighing
Protection class IP67
| Model | CX | |
| Rated Capacity (tf) | 100, 200, 500kgf, 1, 2, 5, 10, 20, 30, 50, 100, 200, 300, 500, 1000tf | |
| Accuracy Class | C3 -3000 | |
| Rate Output mV/V | 2.0 ± 0.1% | |
| Creep Error (30 minutes) %RO | – | |
| Nonlinearity %RO | ± 0.1 | |
| Hysteresis %RO | ± 0.1 | |
| Repeatability %RO | ± 0.1 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 350 ± 5 |
| Output (Ω) | 350 ± 5 | |
| Insulation (MΩ) | > 2.000 | |
| Compensated Temperature Range 0C | -10 ~ +60 | |
| Operating Temperature Range 0C | -20 ~ +80 | |
| Material | Nickel plated alloy steel | |
| Cable Specification | ø7.0 x 4P x 3m | |
| IP | 67 | |
