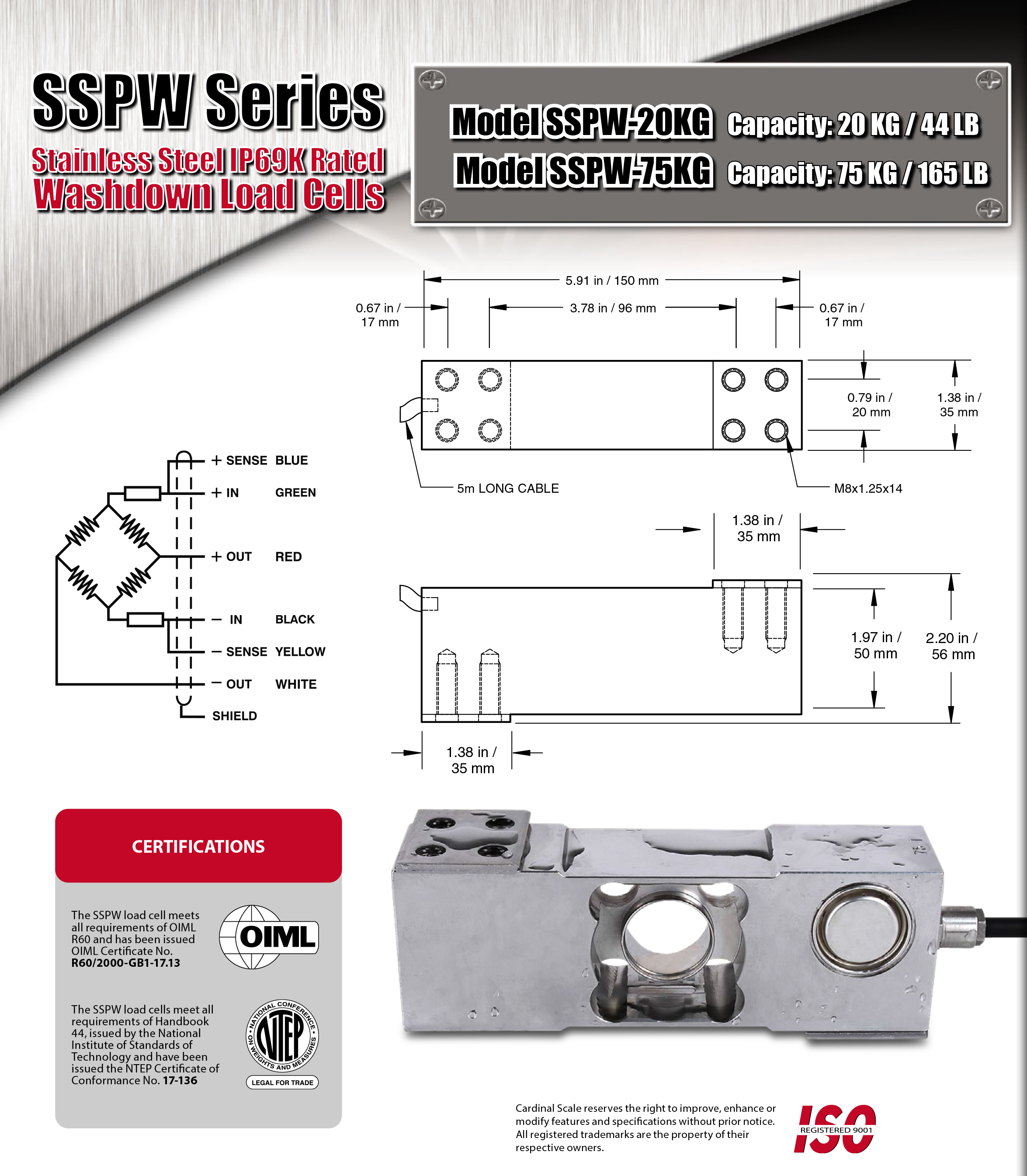

Loadcell CARDINAL SSPW
• Double bending beam load cells
• 20 kg / 44 lb and 75 kg / 165 lb capacities
• High-quality stainless steel construction
• Hermetically sealed, fully welded
• IP69K rated ingress protection
• High accuracy with off-center loads
• 3000 divisions • 5 m / 16 ft load cell cable
| Model | SSPW | |
| Rated Capacity (lbs) | 44, 165 lbs | |
| Accuracy Class According to OIML-R-60 | OIML R 60 | |
| Max. Number of Verification Intervals | 3.000 – OIML | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | ± 10 | |
| Zero balance | ± 2.0 | |
| Safe sideload % Emax | 100 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 200 | |
| Excitation Voltage | Recommended (V) | 5 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -20 ~ +70 | |
| Material | Stainlees steel | |
| Cable Specification | ø 8.0 x 4P x 5m | |
| IP | 69K | |
