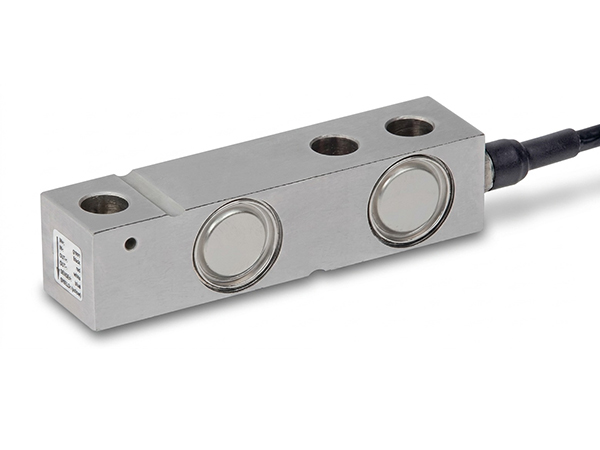

Loadcell CARDINAL HSB
• 500, 1,000, 2,000, and 5,000 kg capacities
• Hermetically-sealed, fully-welded, IP68 (EN 60529) and IP69K (ISO 20753) stainless steel construction
• 3000 divisions OIML R60 class C
• Pre-corner adjustment optimized for multicell systems
| Model | HSB | |
| Rated Capacity (kgf) | 500, 1.000, 2.000, 5.000 kgf | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | 3.000 | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | ± 0.1 | |
| Zero balance | ± 1.0 | |
| Safe sideload % Emax | 100 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 200 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø 8.0 x 4P x 5m | |
| IP | 68/ 69K | |
