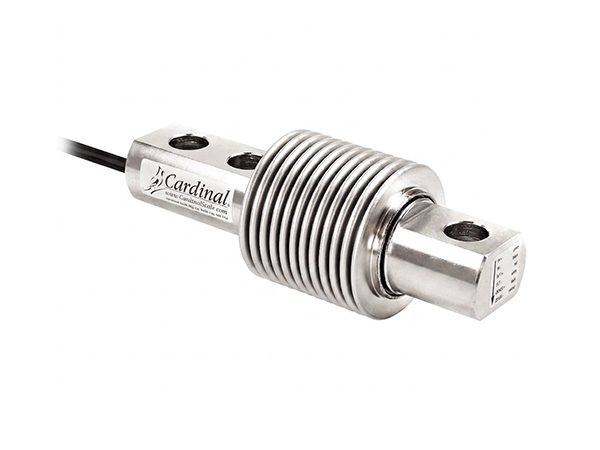

Loadcell CARDINAL CB6
• 10 to 200 kg capacities
• Excellent price-to-performance ratio
• Proven bending beam design
• Stainless steel construction
• NTEP or OIML certified
• Environmentally protected to IP68 and IP69K
• Wiring color code on each end of cell
| Model | CB6 | |
| Rated Capacity (kgf) | 10, 20, 50, 100, 200 kgf | |
| Accuracy Class According to OIML-R-60 | OIML | |
| Max. Number of Verification Intervals | 3.000 – OIML | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | ± 0.1 | |
| Zero balance | ± 1.0 | |
| Safe sideload % Emax | 100 | |
| Maximum Safe Over Load % Emax | 150 | |
| Ultimate Over Load % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 400 ± 20 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -30 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø 8.0 x 4P x 3m | |
| IP | 68/69K | |
