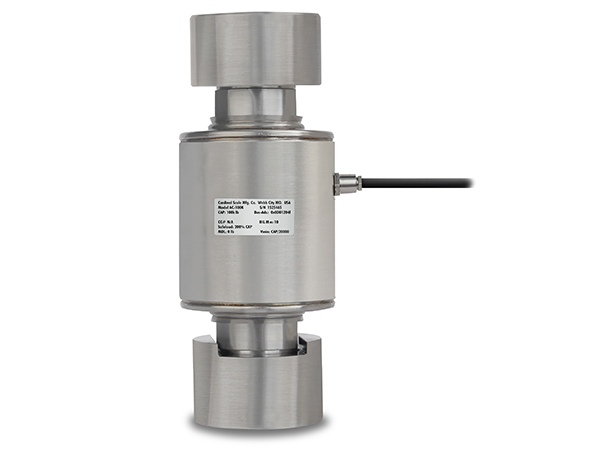

Loadcell CARDINAL AC
• Capacities: 50,000 lb/22,680 kg, 100,000 lb/45,360 kg
• Environmentally-sealed (IP69)
• Stainless steel construction
• 35’/10m integral shielded cable
| Model | AC | |
| Rated Capacity (lbs) | 50.000, 100.000 lbs | |
| Accuracy Class According to OIML-R-60 | C3 – IIIL | |
| Max. Number of Verification Intervals | 4.000 – C3, 10.000 – IIIL | |
| Rate Output mV/V (lbs) | 2.0 | |
| Tolerance on Rate Output mV/V (lbs) | ± 10 | |
| Zero balance | ± 2.0 | |
| Safe sideload % Emax | 100 | |
| Maximum Safe Over Load % Emax | 120 | |
| Ultimate Over Load % Emax | 200 | |
| Excitation Voltage | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Resistance | Input (Ω) | 1150 ± 50 |
| Output (Ω) | 1050 ± 5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -50 ~ +60 | |
| Material | Stainless steel | |
| Cable Specification | ø 8.0 x 6P x 10m | |
| IP | 69 | |
