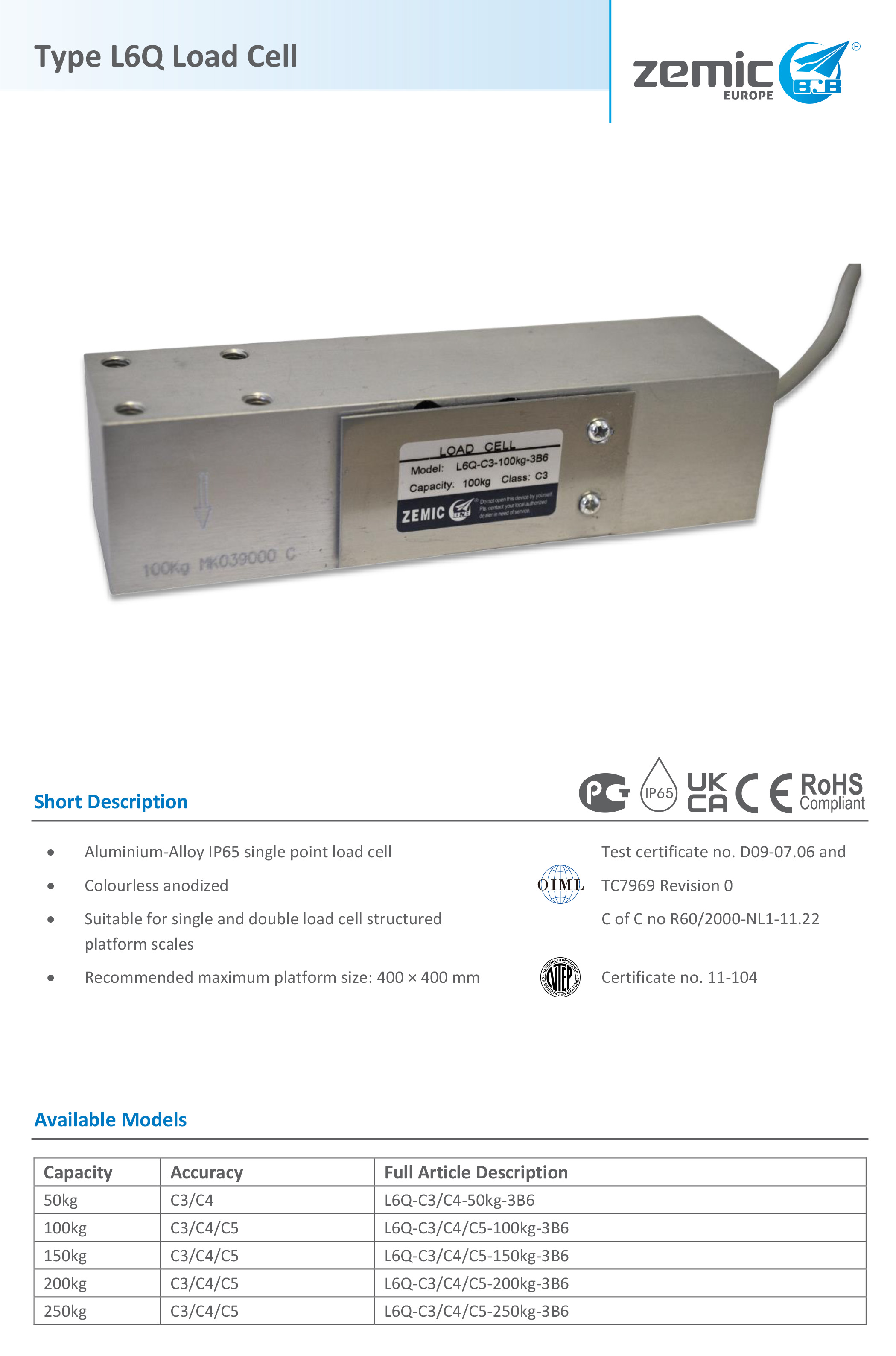

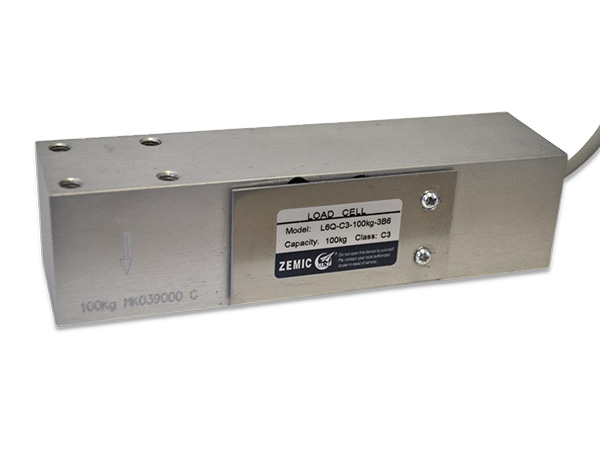

Loadcell ZEMIC L6Q
Aluminium-alloy IP65 single point load cell
Colourless anodized
Suitable for single and double load cell structured platform scales
Recommended maximum platform size: 400 × 400 mm
| Model | L6Q | |
| Rated Capacity (kgf) | 50, 100, 150, 200, 250 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.2 | |
| Combined Error %RO | ± 0.0230 | |
| Creep Error (30 minutes) %RO | ± 0.0245 | |
| Temp. Effect on zero %S/10 0C (ZTC) | ± 0.0140 | |
| Temp. Effect on sensitivity %S/10 0C (STC) | ± 0.0175 | |
| Zero Balance %RO | ± 2.0 | |
| Safe Overload % Emax | 120 | |
| Maximum Overload % Emax | 150 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 406 ± 6 |
| Output (Ω) | 350 ± 3 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -35 ~ +65 | |
| Operating Temperature Range 0C | -40 ~ +70 | |
| Material | Aluminum | |
| Cable Specification | ø 5.0 x 6P x 3m | |
| IP | 65 | |
