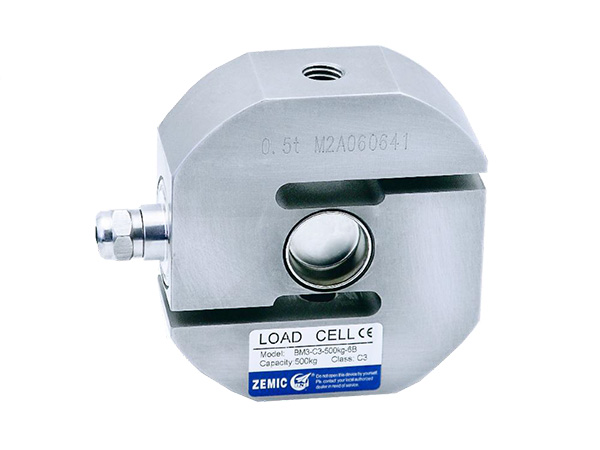

Loadcell ZEMIC BM3
Stainless steel IP68 “S” type load cell
Tension and compression applications
Suitable for hanging, hopper and other weighing devices
| Model | BM3 | |
| Rated Capacity (kgf) | 50, 100, 150, 200, 250, 500kgf, 1, 2, 3, 5, 6, 7.5, 10tf | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.008 | |
| Combined Error %RO | ± 0.023 | |
| Creep Error (30 minutes) %RO | ± 0.016 | |
| Temp. Effect on zero %S/10 0C (ZTC) | ± 0.015 | |
| Temp. Effect on sensitivity %S/10 0C (STC) | ± 0.011 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 350 ± 3.5 |
| Output (Ω) | 351 ± 2 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -35 ~ +65 | |
| Material | Stainless steel | |
| Cable Specification | ø 4.9 x 4P x 6m | |
| IP | 68 | |
