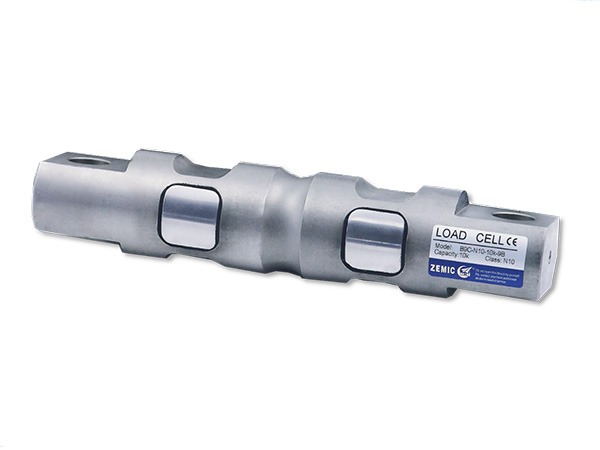

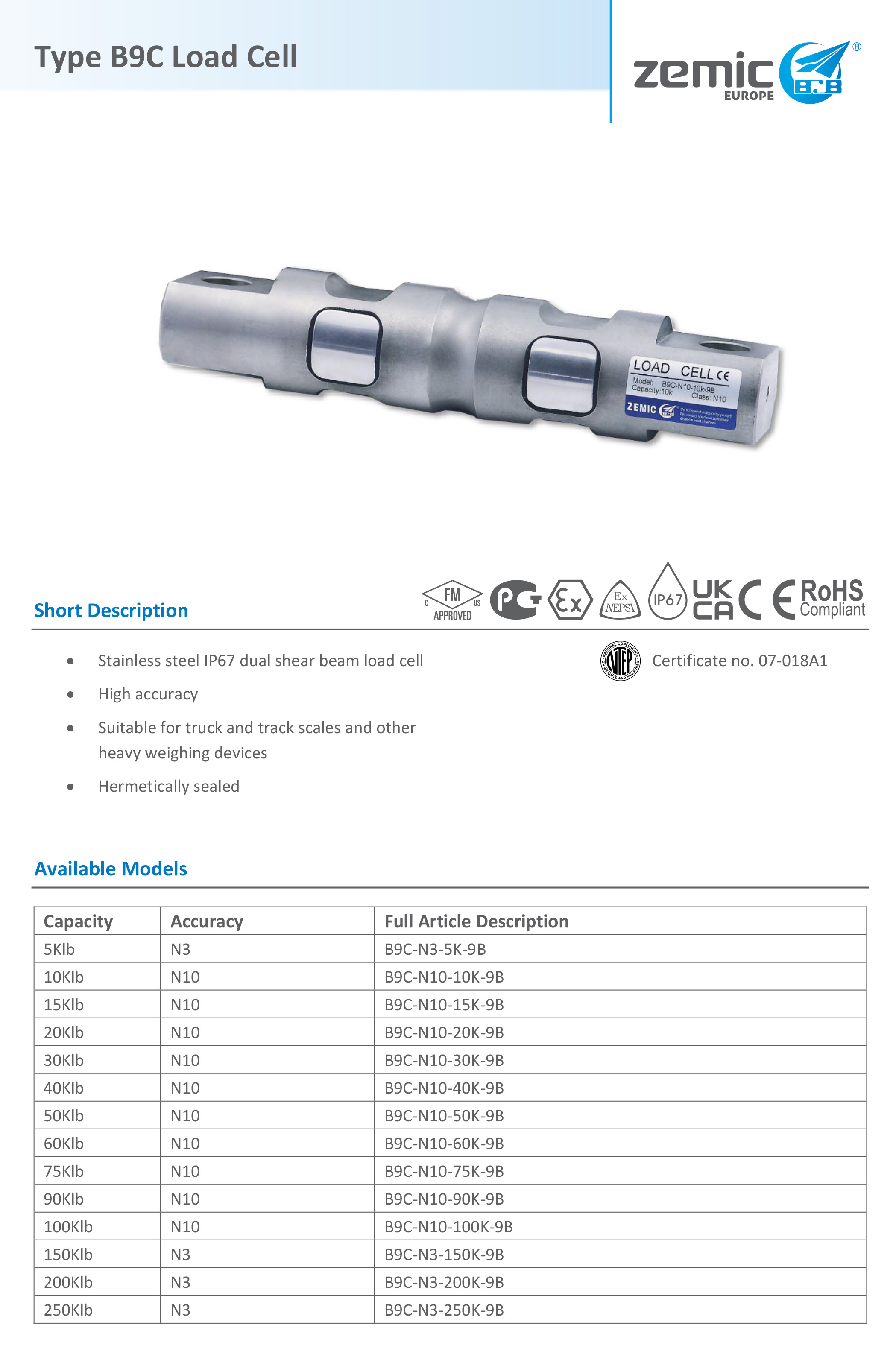

Loadcell ZEMIC B9C
Stainless steel IP67 dual shear beam load cell
High accuracy
Suitable for truck and track scales and other heavy weighing devices
Hermetically sealed
| Model | B9C | |
| Rated Capacity (klb) | 5, 10, 15, 20, 30, 40, 50, 60, 75, 90, 100, 150, 200, 250 | |
| Accuracy Class | N3 | |
| Rate Output mV/V | 3.0 ± 0.003 | |
| Combined Error %RO | ± 0.035 | |
| Creep Error (30 minutes) %RO | ± 0.016 | |
| Temp. Effect on zero %S/10 0C (ZTC) | ± 0.025 | |
| Temp. Effect on sensitivity %S/10 0C (STC) | ± 0.020 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 700 ± 7 |
| Output (Ω) | 700 ± 7 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -35 ~ +65 | |
| Material | Stainless steel | |
| Cable Specification | ø 5.0 x 4P x 9m | |
| IP | 67 | |
