Product Characteristics

High accuracy

OIML R60

Aluminum construction with paralleel beam

Intergral structure and easy installation

Max flatform size 400 x 400 mm

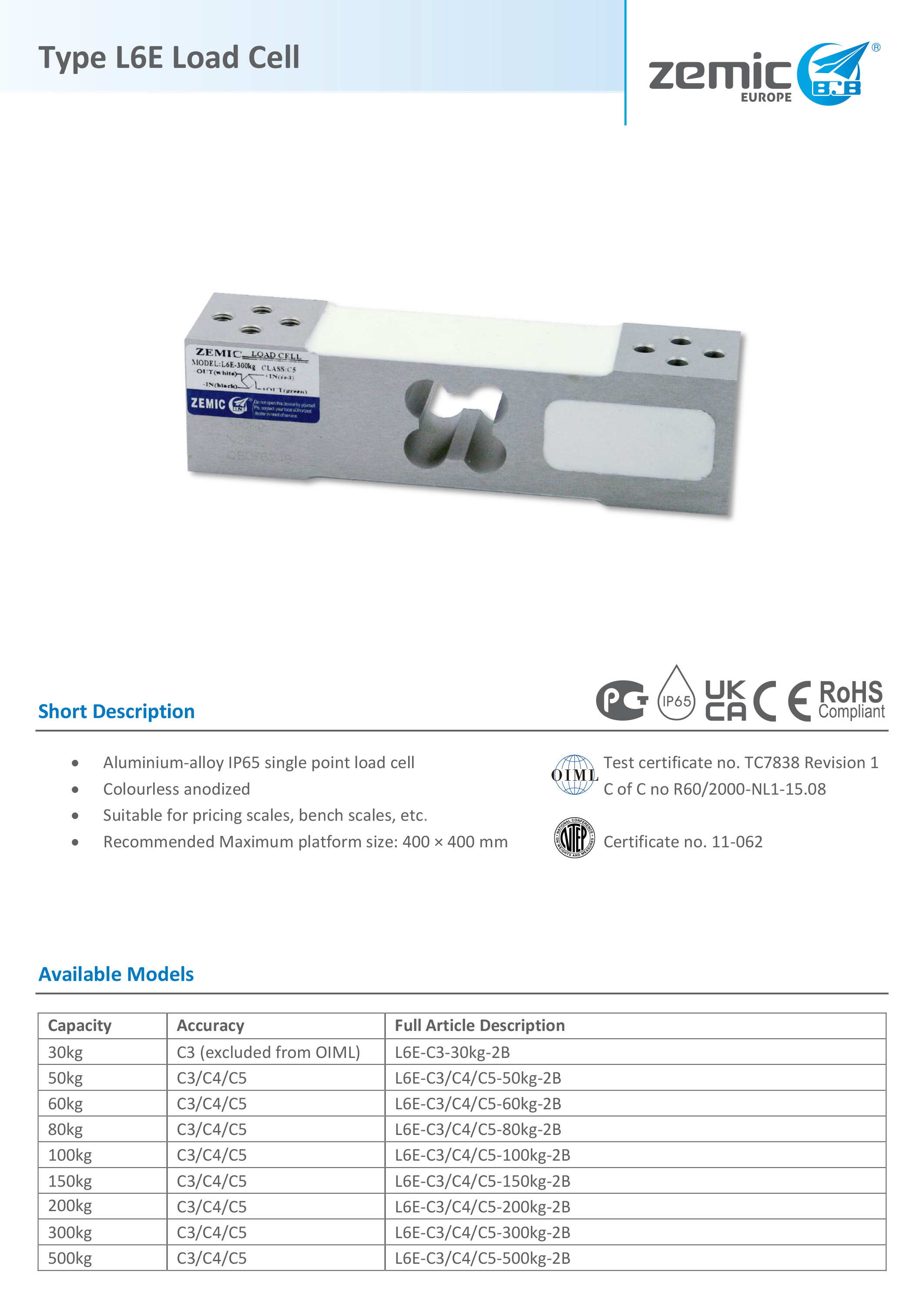

Model L6E
Rated Capacity (kgf) 50, 60, 80, 100, 150, 200, 250, 300
Accuracy Class C3
Combined Error (% R.O) ≤ 0.03
Creep for 30 min (% R.O) ≤ 0.0167
Excitation Recommended (V) 5 ~ 12
Maximum (V) 18
Compensated Temperature Range (0C) -10 ~ +40
Operating Temperature Range (0C) -35 ~ +65
Material & plate Aluminum alloy
