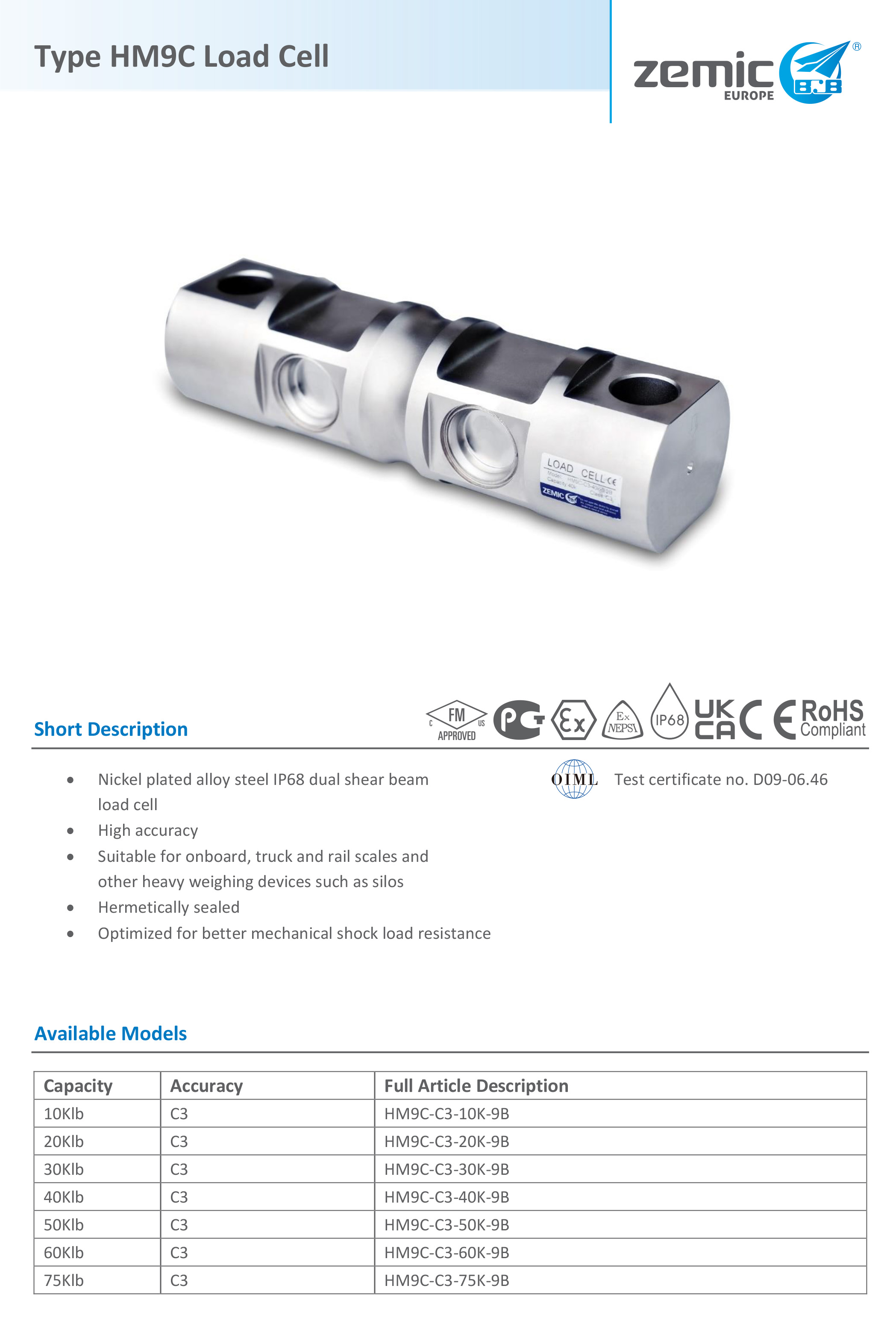

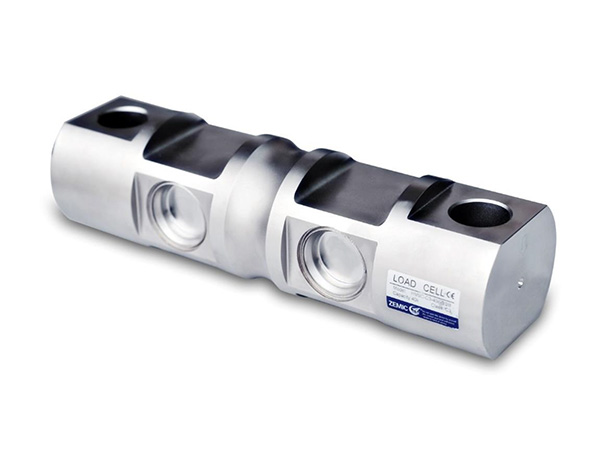

Loadcell ZEMIC HM9C
Nickel plated alloy steel IP68 dual shear beam load cell
Hermetically sealed
Suitable for onboard, truck and rail scales and other heavy weighing devices such as silos
Optimized for better mechanical shock load resistance
High accuracy
| Model | HM9C | |
| Rated Capacity (klb) | 10, 20, 30, 40, 50, 60, 75 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 3.0 ± 0.008 | |
| Combined Error %RO | ± 0.020 | |
| Creep Error (30 minutes) %RO | ± 0.016 | |
| Temp. Effect on zero %S/10 0C (ZTC) | ± 0.015 | |
| Temp. Effect on sensitivity %S/10 0C (STC) | ± 0.011 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 700 ± 7 |
| Output (Ω) | 703 ± 4 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -35 ~ +65 | |
| Operating Temperature Range 0C | -40 ~ +80 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø 5.0 x 4P x 9m | |
| IP | 68 | |
