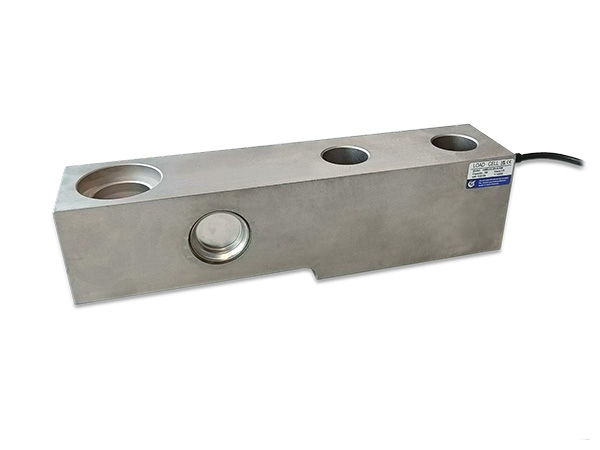

Loadcell ZEMIC HM8
Nickel plated alloy steel IP68 shear beam load cell
Hermetically sealed
Suitable for truck, track, hopper and other electronic weighing devices
Includes HY-8-101 Load button
| Model | HM8 | |
| Rated Capacity (tf) | 1, 2, 3, 5, 10, 15, 20, 25, 30 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.002 | |
| Combined Error %RO | ± 0.020 | |
| Creep Error (30 minutes) %RO | ± 0.016 | |
| Temp. Effect on zero %S/10 0C (ZTC) | ± 0.015 | |
| Temp. Effect on sensitivity %S/10 0C (STC) | ± 0.011 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 400 ± 10 |
| Output (Ω) | 351 ± 3.0 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -35 ~ +65 | |
| Operating Temperature Range 0C | -40 ~ +70 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø 6.2 x 4P x 6.5m | |
| IP | 68 | |
