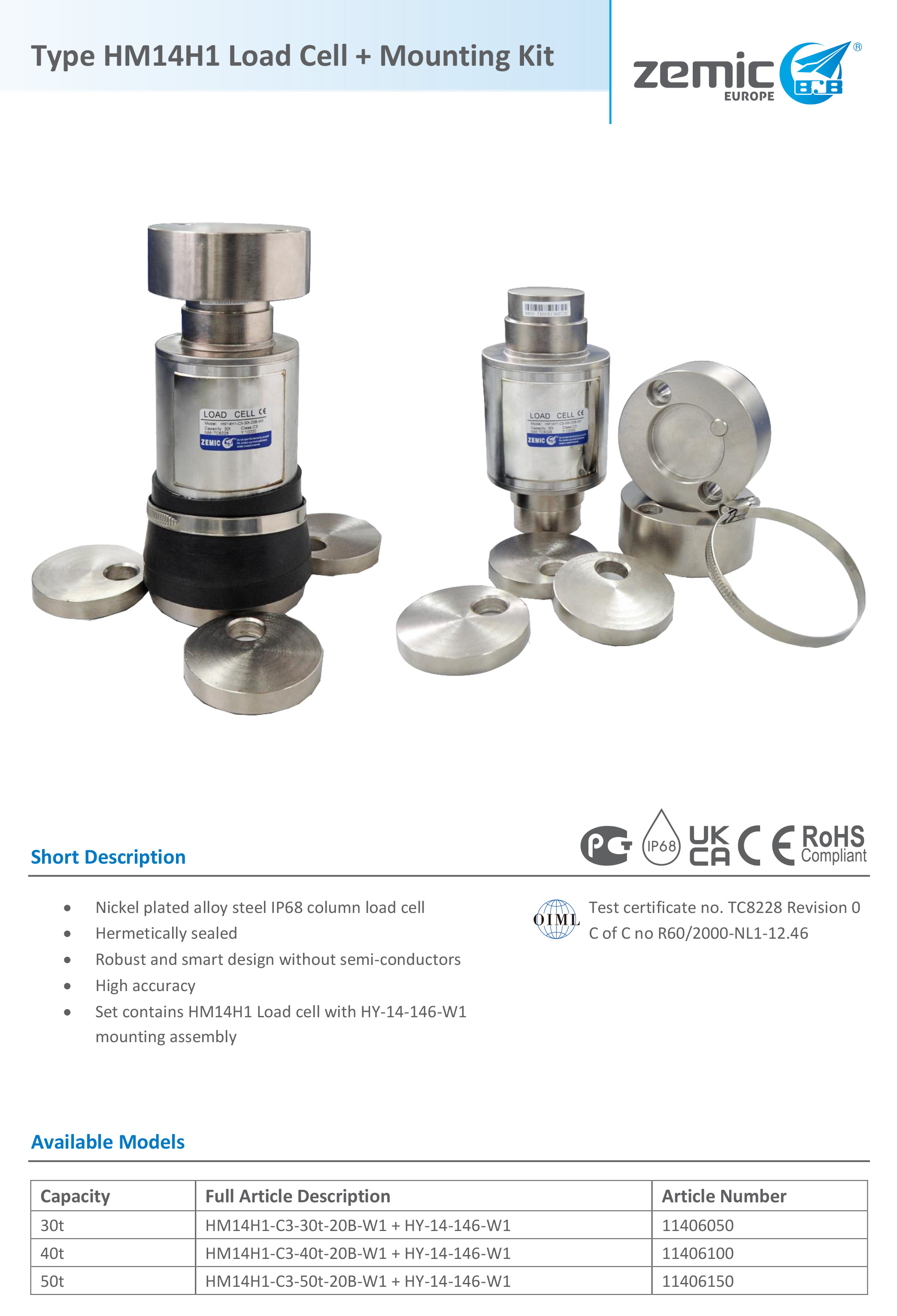

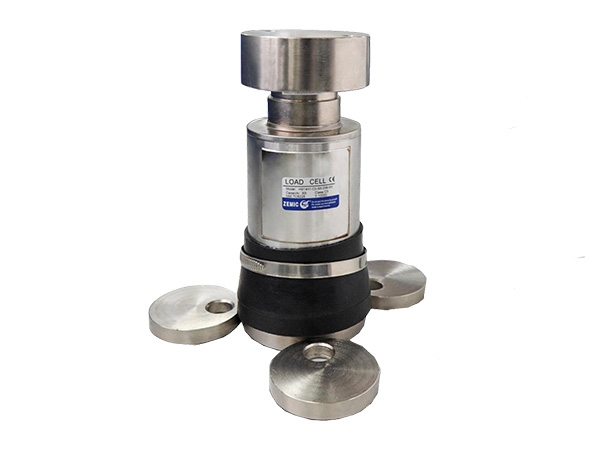

Loadcell ZEMIC HM14H1
Nickel plated alloy steel IP68 column load cell
Hermetically sealed
Robust and smart design without semi-conductors
High accuracy
Set contains HM14H1 Load cell with HY-14-146-W1mounting assembly
| Model | HM14H1 | |
| Rated Capacity (tf) | 30, 40, 50 | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 2.0 ± 0.002 | |
| Combined Error %RO | ± 0.020 | |
| Creep Error (30 minutes) %RO | ± 0.016 | |
| Temp. Effect on zero %S/10 0C (ZTC) | ± 0.020 | |
| Temp. Effect on sensitivity %S/10 0C (STC) | ± 0.02 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 700 ± 7 |
| Output (Ω) | 703 ± 4 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -35 ~ +65 | |
| Operating Temperature Range 0C | -40 ~ +70 | |
| Material | Nickel Plated alloy steel | |
| Cable Specification | ø 5.0 x 4P x 20m | |
| IP | 68 | |
