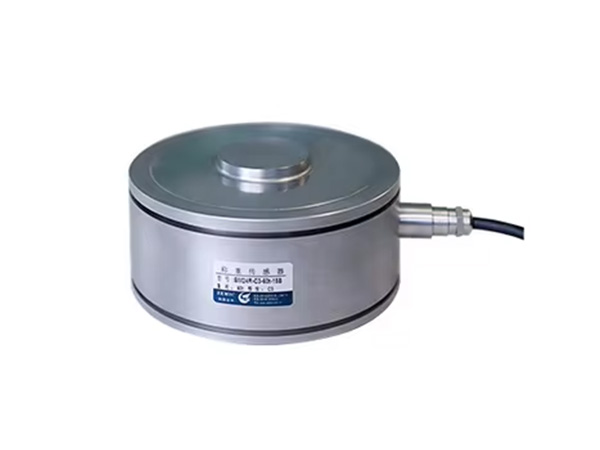

Loadcell ZEMIC BM24R
Stainless steel IP68 low profile ring torsion load cell
Hermetically sealed
Suitable for hopper, platform and pallet scales
Integrated static overload protection up to 13t
Wide range of capacities from 60kg to 60t
| Model | BM24R | |
| Rated Capacity (kgf) | 60, 130, 250, 280, 500kgf, 1, 2, 3.5, 5, 10, 13, 28, 60tf | |
| Accuracy Class | C3 – 3000 | |
| Rate Output mV/V | 1.0 ± 0.01 | |
| Combined Error %RO | ± 0.0230 | |
| Creep Error (30 minutes) %RO | ± 0.0245 | |
| Temp. Effect on zero %S/10 0C (ZTC) | ± 0.0150 | |
| Temp. Effect on sensitivity %S/10 0C (STC) | ± 0.0117 | |
| Zero Balance %RO | ± 1.0 | |
| Safe Overload % Emax | 150 | |
| Maximum Overload % Emax | 300 | |
| Excitation Voltage | Recommended (V) | 5 ~ 12 |
| Maximum (V) | 18 | |
| Resistance | Input (Ω) | 1260 ± 100 |
| Output (Ω) | 1020 ± 0.5 | |
| Insulation (MΩ) | > 5.000 | |
| Compensated Temperature Range 0C | -10 ~ +40 | |
| Operating Temperature Range 0C | -35 ~ +70 | |
| Material | Stainless steel | |
| Cable Specification | ø 5.0 x 6P x 3m | |
| IP | 68 | |
